About The Heritage Wing

The Heritage Wing gives parents, grandparents or adult kids their own space: a guest suite wing with its own porch, door and kitchenette, joined to the main house by a short covered connector. Inside are four bedrooms including the guest suite, a brick fireplace and a curbless walk-in shower in the primary bath.

Highlights

Private guest suite wing with its own entry
Guest kitchenette
Curbless walk-in primary shower
Shared rear patio
Four bedrooms

Best for: Multigenerational families.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Large luxury barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Heritage Wing

Who it suits

The Heritage Wing suits households with parents, grandparents or adult children who want their own space. The guest suite is a separate wing with its own front door, porch, kitchenette, bedroom and bath, and a covered connector links it to the house.

Room by room

Front door: a 3 ft door on the 60 ft porch enters the great room, which is 21 ft 6 in by 43 ft.
Primary suite: off the great room, with a walk-in closet and a bath that has a curbless walk-in shower.
Mud hall: it links the garage, the laundry and the great room, which also has a powder room and pantry.
East hall: leads to Bedroom 2, Bath 2 and a north hall with Bedroom 3, the linen closet and the mechanical room.
Guest wing: the east hall’s door to the connector leads to the guest living room and kitchenette, then the guest bedroom, closet and bath.

Build notes

The main house has a 6:12 roof with a 22 ft ridge; the guest suite ridge is 16 ft, with its front wall 10 ft ahead of the connector.
The 8 x 10 ft connector has a roof but no walls, so the trip to the guest suite is outdoors.
The 24 x 24 ft garage wing at the left end is set back 20 ft from the house front. Fire separation at the mud hall door is a question for your builder and building department.
The guest suite porch is 24 x 6 ft on 4 posts. One interior bearing line appears on the plan.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

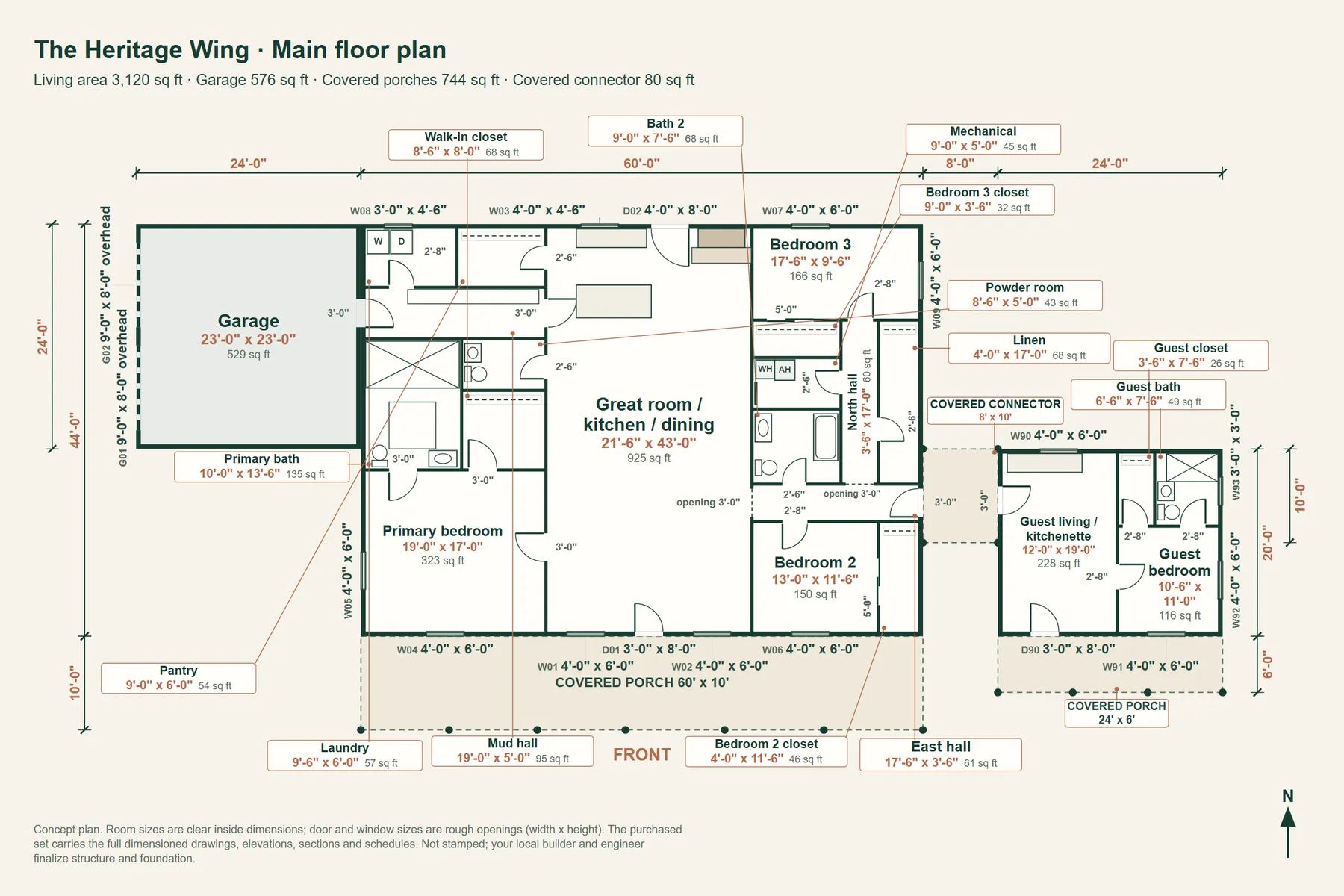

The Heritage Wing: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 116 ft wide by 44 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-0", ridge 22'-0"
Ridge runs left-to-right, parallel to the front wall
Chimney above the Great room / kitchen / dining (3 ft wide), centered 38 ft 6 in from the left end of the house (as you face the front), through the rear roof slope, 20 ft 6 in from the ridge; its top is 19 ft 2 in above the floor, below the ridge
Masses: House: 60' x 44', living space, eave 11'-0", ridge 22'-0"
Covered connector: 8' x 10', open-air, eave 11'-0", ridge 13'-0"
Guest suite: 24' x 20', living space, eave 10'-0", ridge 16'-0"
Garage: 24' x 24', eave 10'-0", ridge 16'-0"
Porches: Front porch (left): 60' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 7 posts
Front porch (right) (on the guest suite): 24' x 6', 3:12 shed roof attached at 10 ft, beam 8 ft 6 in high at the posts, 4 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. One interior bearing line is shown on the plan. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 13 windows, 5 exterior doors, 2 overhead doors, 11 porch posts

Rooms

Room	Size	Area
Primary bedroom	19'-0" x 17'-0"	323 sq ft
Primary bath	10'-0" x 13'-6"	135 sq ft
Walk-in closet	8'-6" x 8'-0"	68 sq ft
Powder room	8'-6" x 5'-0"	42 sq ft
Mud hall	19'-0" x 5'-0"	95 sq ft
Laundry	9'-6" x 6'-0"	57 sq ft
Pantry	9'-0" x 6'-0"	54 sq ft
Great room / kitchen / dining	21'-6" x 43'-0"	924 sq ft
Bedroom 2	13'-0" x 11'-6"	150 sq ft
Bedroom 2 closet	4'-0" x 11'-6"	46 sq ft
East hall	17'-6" x 3'-6"	61 sq ft
Bath 2	9'-0" x 7'-6"	68 sq ft
Mechanical	9'-0" x 5'-0"	45 sq ft
Bedroom 3 closet	9'-0" x 3'-6"	32 sq ft
North hall	3'-6" x 17'-0"	60 sq ft
Linen	4'-0" x 17'-0"	68 sq ft
Bedroom 3	17'-6" x 9'-6"	166 sq ft
Guest living / kitchenette	12'-0" x 19'-0"	228 sq ft
Guest bedroom	10'-6" x 11'-0"	116 sq ft
Guest closet	3'-6" x 7'-6"	26 sq ft
Guest bath	6'-6" x 7'-6"	49 sq ft
Garage	23'-0" x 23'-0"	529 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Window	4'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Window	4'-0" x 6'-0"	2'-0"	Bedroom 3	Rear
W08	Window	3'-0" x 4'-6"	3'-6"	Laundry	Rear
W09	Window	4'-0" x 6'-0"	2'-0"	Bedroom 3	Right side
W90	Window	4'-0" x 6'-0"	2'-0"	Guest living / kitchenette	Rear
W91	Window	4'-0" x 6'-0"	2'-0"	Guest bedroom	Front
W92	Window	4'-0" x 6'-0"	2'-0"	Guest bedroom	Right side
W93	Window	3'-0" x 3'-0"	5'-0"	Guest bath	Right side
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Door	4'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D20	Door to the Covered connector	3'-0" x 8'-0"	no sill	East hall	Right side
D27	Door to the Covered connector	3'-0" x 8'-0"	no sill	Guest living / kitchenette	Left side
D90	Entry door	3'-0" x 8'-0"	no sill	Guest living / kitchenette	Front
G01	Overhead door	9'-0" x 8'-0"	no sill	Garage	Left side
G02	Overhead door	9'-0" x 8'-0"	no sill	Garage	Left side

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
