About The Cypress

Deep charcoal siding, a black metal roof and natural cypress porch posts give The Cypress a strong Southern farmhouse look. The house and three-car garage stretch beneath one straight ridge, with a deep front porch across the house. Inside, the vaulted great room brings the kitchen and dining space together, and a glass door opens to the covered back porch. A mudroom connects the garage to the living space, while a hall leads to the bedrooms and two hall baths.

Highlights

Five bedrooms on one level
Three-car garage under one roof
Full-width 10-ft front porch
24 x 10 ft covered back porch
Mudroom laundry and walk-in pantry

Best for: Larger households that want all bedrooms on one floor and room for three vehicles.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Large luxury barndominium floor plans · Farmhouse barndominium floor plans

In the $149 plan set

See a sample (PDF, dimensions removed)

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Cypress

Who it suits

The Cypress gives a larger household a single floor and a garage beside the mudroom. Its long front porch belongs to the house portion, while the garage fronts the same line under the shared roof.

Room by room

Front entry: a 3 ft door opens into the vaulted great room, 24 x 35 ft, with the kitchen at the back.
Bedroom hall: a 3 ft cased opening leads from the great room to four secondary bedrooms, two hall baths and the primary suite at the right end.
Hall baths: Bath 2 is 6 ft wide by 17 ft 6 in deep; Bath 3 is 6 x 13 ft, so both are long and narrow.
Garage connection: the mudroom and laundry lead to the garage; the plan places the water heater, air handler and electrical panel there.

Build notes

One straight 6:12 gable roof covers the 84 x 36 ft house and 36 x 36 ft garage; its eave is 11 ft and its ridge is 20 ft.
The front porch runs 84 ft across the house at a depth of 10 ft, with 10 posts beneath a separate 3:12 shed roof.
A 24 x 10 ft covered porch meets the rear glass door from the great room.
The plan shows conventional wood framing, with member sizes and connections for the builder’s engineer; a steel or post-frame build calls for an adaptation by the builder or engineer.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

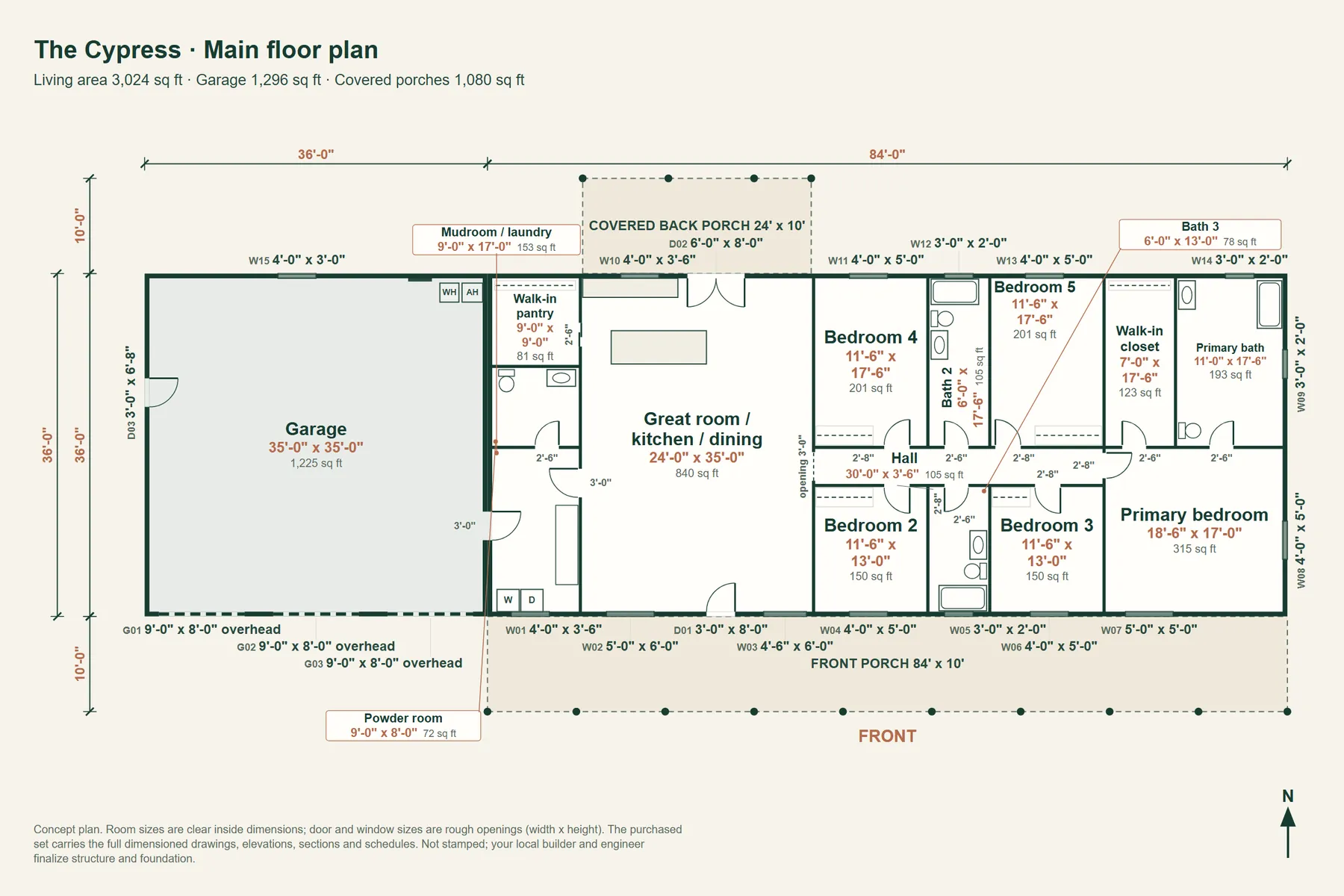

The Cypress: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 120 ft wide by 36 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-0", ridge 20'-0"
Ridge runs left-to-right, parallel to the front wall
Masses: House: 84' x 36', living space, eave 11'-0", ridge 20'-0"
Garage: 36' x 36', eave 11'-0", ridge 20'-0"
Porches: Front porch: 84' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 10 posts
Covered back porch: 24' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 4 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 15 windows, 3 exterior doors, 3 overhead doors, 14 porch posts

Rooms

Room	Size	Area
Mudroom / laundry	9'-0" x 17'-0"	153 sq ft
Powder room	9'-0" x 8'-0"	72 sq ft
Walk-in pantry	9'-0" x 9'-0"	81 sq ft
Great room / kitchen / dining	24'-0" x 35'-0"	840 sq ft
Hall	30'-0" x 3'-6"	105 sq ft
Bedroom 2	11'-6" x 13'-0"	150 sq ft
Bath 3	6'-0" x 13'-0"	78 sq ft
Bedroom 3	11'-6" x 13'-0"	150 sq ft
Bedroom 4	11'-6" x 17'-6"	201 sq ft
Bath 2	6'-0" x 17'-6"	105 sq ft
Bedroom 5	11'-6" x 17'-6"	201 sq ft
Primary bedroom	18'-6" x 17'-0"	314 sq ft
Walk-in closet	7'-0" x 17'-6"	122 sq ft
Primary bath	11'-0" x 17'-6"	192 sq ft
Garage	35'-0" x 35'-0"	1,225 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	4'-0" x 3'-6"	3'-6"	Mudroom / laundry	Front
W02	Window	5'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-6" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W04	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 2	Front
W05	Window	3'-0" x 2'-0"	5'-0"	Bath 3	Front
W06	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 3	Front
W07	Casement window	5'-0" x 5'-0"	2'-0"	Primary bedroom	Front
W08	Casement window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Right side
W09	Window	3'-0" x 2'-0"	5'-0"	Primary bath	Right side
W10	Window	4'-0" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W11	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 4	Rear
W12	Window	3'-0" x 2'-0"	5'-0"	Bath 2	Rear
W13	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 5	Rear
W14	Window	3'-0" x 2'-0"	5'-0"	Primary bath	Rear
W15	Window	4'-0" x 3'-0"	4'-0"	Garage	Rear
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D03	Door	3'-0" x 6'-8"	no sill	Garage	Left side
G01	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front
G02	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front
G03	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
