About The Timberline

The Timberline greets you with heavy timber king-post trusses over the entry and keeps the timber going inside, where the great room is crowned with exposed trusses and a river-rock fireplace. Taupe siding and a bronze roof sit easily in a wooded lot, and a rear deck with room for a hot tub makes the trees part of daily life.

Highlights

Timber truss entry porch
Exposed trusses in the great room
River-rock fireplace
Soapstone kitchen island
Rear deck with room for a hot tub

Best for: Mountain and wooded lots.

This plan is in: 3 bedroom barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Timberline

Who it suits

The Timberline suits wooded and mountain lots. A timber gable 12 ft wide marks the entry on a front porch that spans 66 ft. A covered rear deck, 26 x 10 ft, is meant to hold a hot tub.

Room by room

Front door: a double door 5 ft wide opens into the great room, 23 ft 6 in by 35 ft, with exposed trusses overhead and a river-rock fireplace.
Close by: the great room has doors to a powder room, a laundry, a pantry and a coat closet.
Primary suite: entered from the great room; it measures 21 ft by 19 ft 6 in and has a bath and a walk-in closet.
Bedrooms: down the hall are Bedroom 2, Bath 2 and Bedroom 3.
Rear deck: the great room’s 6 ft glass door opens to the covered deck.

Build notes

The 7:12 roof stands 11 ft to the eave and 21 ft 6 in to the ridge. A 7:12 cross gable, 12 ft wide, starts 28 ft from the left corner, over the porch at the entry.
Your engineer sizes the exposed trusses and their connections.
The porch has 10 posts and the rear deck 4, both under 3:12 shed roofs. The hot tub adds weight, power and drainage that your builder and engineer plan for.
The chimney exits the rear roof slope 15 ft 6 in from the ridge and stays below it.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

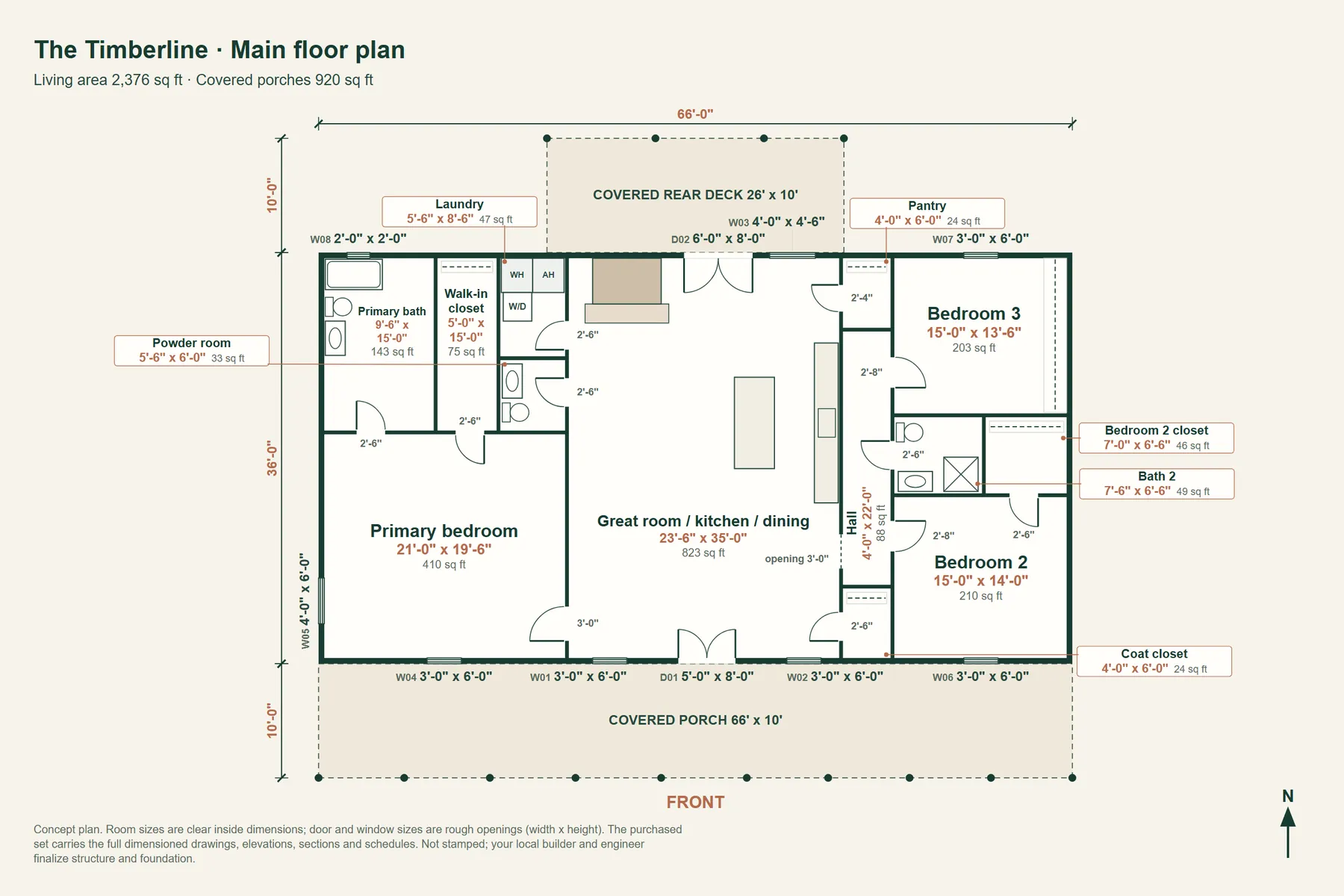

The Timberline: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 66 ft wide by 36 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 7:12 pitch, 18 in overhangs
Eave 11'-0", ridge 21'-6"
Ridge runs left-to-right, parallel to the front wall
Cross gable on the front: a 7:12 gable 12 ft wide, starting 28 ft from the left corner of the front wall, over the porch
Chimney above the Great room / kitchen / dining (3 ft wide), centered 27 ft from the left end of the house (as you face the front), through the rear roof slope, 15 ft 6 in from the ridge; its top is 20 ft 9-1/2 in above the floor, below the ridge
Masses: House: 66' x 36', living space, eave 11'-0", ridge 21'-6"
Porches: Front porch: 66' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 10 posts
Covered rear deck with hot tub: 26' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 4 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads.
Counts: 8 windows, 2 exterior doors, 14 porch posts

Rooms

Room	Size	Area
Primary bedroom	21'-0" x 19'-6"	410 sq ft
Primary bath	9'-6" x 15'-0"	142 sq ft
Walk-in closet	5'-0" x 15'-0"	75 sq ft
Powder room	5'-6" x 6'-0"	33 sq ft
Laundry	5'-6" x 8'-6"	47 sq ft
Great room / kitchen / dining	23'-6" x 35'-0"	822 sq ft
Coat closet	4'-0" x 6'-0"	24 sq ft
Hall	4'-0" x 22'-0"	88 sq ft
Pantry	4'-0" x 6'-0"	24 sq ft
Bedroom 2	15'-0" x 14'-0"	210 sq ft
Bath 2	7'-6" x 6'-6"	49 sq ft
Bedroom 2 closet	7'-0" x 6'-6"	46 sq ft
Bedroom 3	15'-0" x 13'-6"	202 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Casement window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Casement window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 3	Rear
W08	Window	2'-0" x 2'-0"	5'-0"	Primary bath	Rear
D01	Double entry door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
