Name: The Vista Grande barndominium plan set
Brand: BarndoVista
SKU: BV-25
Price: 149 USD
Availability: InStock

About The Vista Grande

The Vista Grande is BarndoVista at its most aspirational: warm beige siding and cream limestone, a heavy timber portico, floor-to-ceiling windows and a rear courtyard with a pool, an outdoor living room and a fire pit. A three-car garage wing, a chef's kitchen and a spa primary bath complete the estate.

Highlights

Heavy timber entry portico
Rear courtyard with pool and outdoor living room
Three-car garage wing
Chef's kitchen with long stone island
Spa primary bath

Best for: Estate lots and dream builds.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Large luxury barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Vista Grande

Who it suits

The Vista Grande suits estate lots and big builds. A garage wing for 3 cars, a bedroom wing at the back and an outdoor living room spread the plan out, so the lot needs to be wide.

Room by room

Front door: a 6 x 9 ft double door under the timber portico opens into the great room, with a mudroom, pantry, powder room and coat closet off it.
Outdoors: an 8 ft glass door leads to the covered outdoor living room; a 12 ft glass door also opens to the rear.
Primary suite: the west gallery runs past the wine and game room to the primary suite, with its walk-in closet and bath.
Bedroom wing: the north gallery passes the laundry and linen closet to a hall serving Bedroom 2, Bedroom 3, Bedroom 4, Bath 2 and Bath 3.

Build notes

The house roof is 7:12, with an 11 ft eave and a ridge at 21 ft 6 in. Two front cross gables are 12 ft wide over the portico and 22 ft wide over the primary bedroom.
The bedroom wing runs front to back at the rear, with a 19 ft 9 in ridge. The 48 x 24 ft garage wing has a 17 ft ridge and 3 doors, each 9 x 8 ft.
The garage opens into the mudroom, and your builder confirms the garage-to-house separation your area calls for at that door.
The outdoor living room is 16 x 16 ft and open to the air. Any pool is designed separately; your building department decides what it needs.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

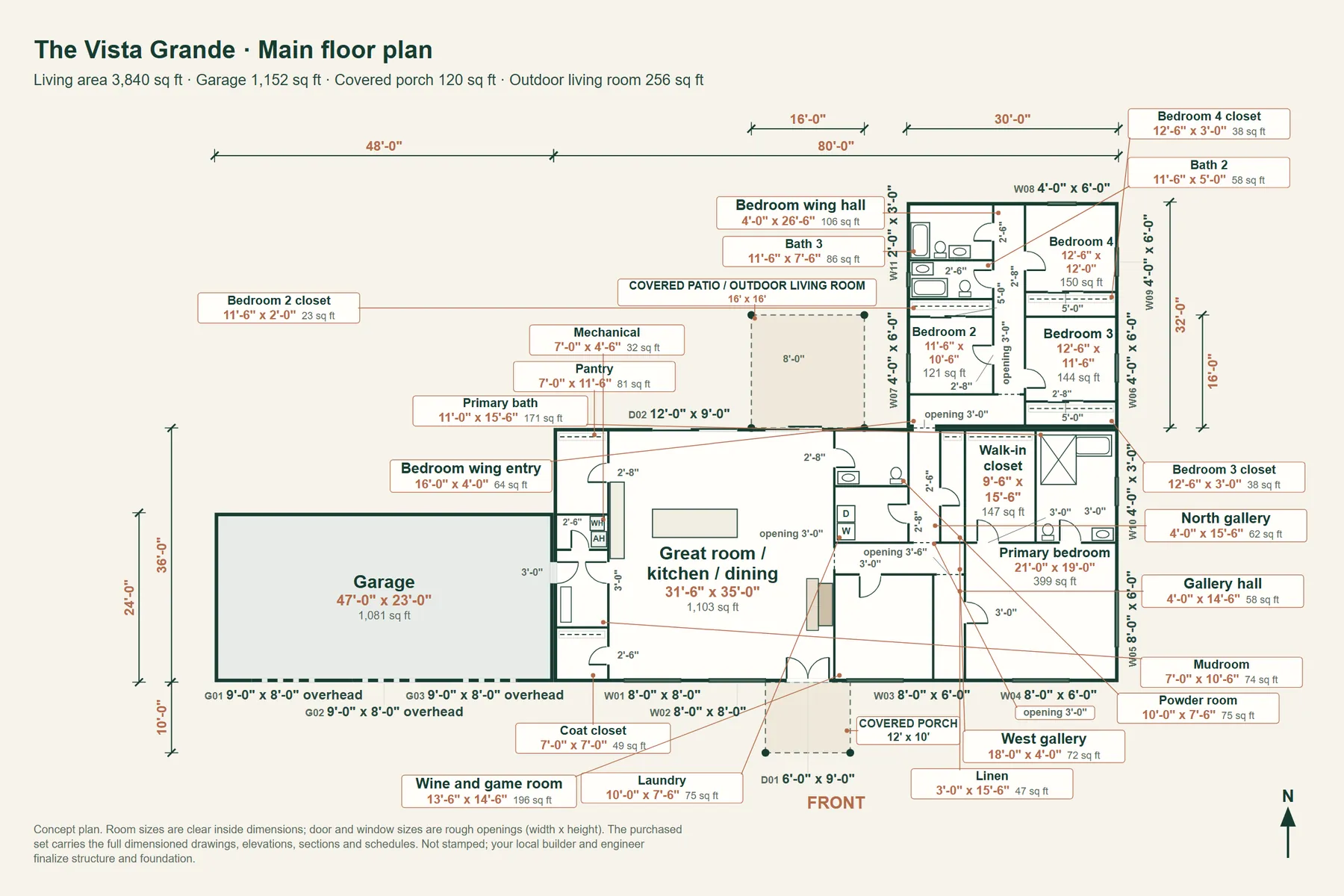

The Vista Grande: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 128 ft wide by 68 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 7:12 pitch, 18 in overhangs
Eave 11'-0", ridge 21'-6"
Ridge runs left-to-right, parallel to the front wall
Cross gable on the front: a 7:12 gable 12 ft wide, starting 30 ft from the left corner of the front wall, over the entry portico
Cross gable on the front: a 7:12 gable 22 ft wide, starting 58 ft from the left corner of the front wall, over the Primary bedroom
Chimney above the Great room / kitchen / dining (3 ft wide), centered 38 ft 6 in from the left end of the house (as you face the front), through the front roof slope, 7 ft from the ridge; its top is 23 ft 6 in above the floor, 2 ft above the ridge
Masses: House: 80' x 36', living space, eave 11'-0", ridge 21'-6"
Bedroom wing: 30' x 32', living space, eave 11'-0", ridge 19'-9"
Garage: 48' x 24', eave 10'-0", ridge 17'-0"
Outdoor living room: 16' x 16', open-air, eave 10'-0", ridge 14'-8"
Porches: Front porch: 12' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 2 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 11 windows, 3 exterior doors, 3 overhead doors, 2 porch posts

Rooms

Room	Size	Area
Coat closet	7'-0" x 7'-0"	49 sq ft
Mudroom	7'-0" x 10'-6"	74 sq ft
Mechanical	7'-0" x 4'-6"	32 sq ft
Pantry	7'-0" x 11'-6"	80 sq ft
Great room / kitchen / dining	31'-6" x 35'-0"	1,102 sq ft
Wine and game room	13'-6" x 14'-6"	196 sq ft
Gallery hall	4'-0" x 14'-6"	58 sq ft
West gallery	18'-0" x 4'-0"	72 sq ft
Laundry	10'-0" x 7'-6"	75 sq ft
Powder room	10'-0" x 7'-6"	75 sq ft
North gallery	4'-0" x 15'-6"	62 sq ft
Linen	3'-0" x 15'-6"	46 sq ft
Primary bedroom	21'-0" x 19'-0"	399 sq ft
Walk-in closet	9'-6" x 15'-6"	147 sq ft
Primary bath	11'-0" x 15'-6"	170 sq ft
Bedroom wing entry	16'-0" x 4'-0"	64 sq ft
Bedroom 3 closet	12'-6" x 3'-0"	38 sq ft
Bedroom 3	12'-6" x 11'-6"	144 sq ft
Bedroom wing hall	4'-0" x 26'-6"	106 sq ft
Bedroom 2	11'-6" x 10'-6"	121 sq ft
Bedroom 2 closet	11'-6" x 2'-0"	23 sq ft
Bath 2	11'-6" x 5'-0"	58 sq ft
Bath 3	11'-6" x 7'-6"	86 sq ft
Bedroom 4 closet	12'-6" x 3'-0"	38 sq ft
Bedroom 4	12'-6" x 12'-0"	150 sq ft
Garage	47'-0" x 23'-0"	1,081 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	8'-0" x 8'-0"	1'-0"	Great room / kitchen / dining	Front
W02	Window	8'-0" x 8'-0"	1'-0"	Great room / kitchen / dining	Front
W03	Window	8'-0" x 6'-0"	2'-0"	Wine and game room	Front
W04	Window	8'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Window	8'-0" x 6'-0"	2'-0"	Primary bedroom	Right side
W06	Casement window	4'-0" x 6'-0"	2'-0"	Bedroom 3	Right side
W07	Casement window	4'-0" x 6'-0"	2'-0"	Bedroom 2	Left side
W08	Casement window	4'-0" x 6'-0"	2'-0"	Bedroom 4	Rear
W09	Casement window	4'-0" x 6'-0"	2'-0"	Bedroom 4	Right side
W10	Window	4'-0" x 3'-0"	5'-0"	Primary bath	Right side
W11	Window	2'-0" x 3'-0"	5'-0"	Bath 2	Left side
D01	Double entry door	6'-0" x 9'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	12'-0" x 9'-0"	no sill	Great room / kitchen / dining	Rear
D03	Glass door to the Covered patio / outdoor living room	8'-0" x 9'-0"	no sill	Great room / kitchen / dining	Rear
G01	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front
G02	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front
G03	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
