About The Bluegrass Cedar

The Bluegrass Cedar mixes cream siding with cedar shingle gables, two shed dormers and a full-length porch on heavy cedar posts. Inside, a fieldstone fireplace and a vaulted cedar ceiling set an equestrian-farmhouse mood, and a four-bunk room means cousins always have a place to sleep.

Highlights

Cedar shingle gables and shed dormers
Full-length front porch
Fieldstone fireplace
Four-bunk room
Fire-pit patio

Best for: Big families and horse-property owners.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Farmhouse barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Bluegrass Cedar

Who it suits

The Bluegrass Cedar suits big households and small horse properties. Its bunk room, Bedroom 4 on the plan, has a bath of its own. The garage sits behind the house, so the front shows a 74 ft porch and 2 shed dormers rather than garage doors.

Room by room

Front door: from the full-length porch, a 3 ft door opens into the great room, with 2 shed dormers and their window pairs on the roof over it.
Primary suite: 18 ft by 15 ft, opening off the great room, with 3 casement windows, a walk-in closet and a bath.
Pantry and mudroom: off the great room, with the door to the garage in the mudroom.
Bedrooms: the hall reaches Bedroom 2, Bedroom 3, the bunk room and Bath 2.

Build notes

The roof is 8:12, 11 ft to the eave and 23 ft to the ridge. The 2 shed dormers are each 8 ft wide and about 4 ft tall; your engineer sizes the framing around them.
The garage wing runs front to back under its own roof, also 8:12, with a 10 ft eave and an 18 ft ridge, attached to the back of the house toward the left end.
It has a single 16 x 7 ft overhead door on its left side. Your building department decides what the mudroom door to the garage needs, and your builder confirms it.
The front porch is 74 ft long on 9 posts.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

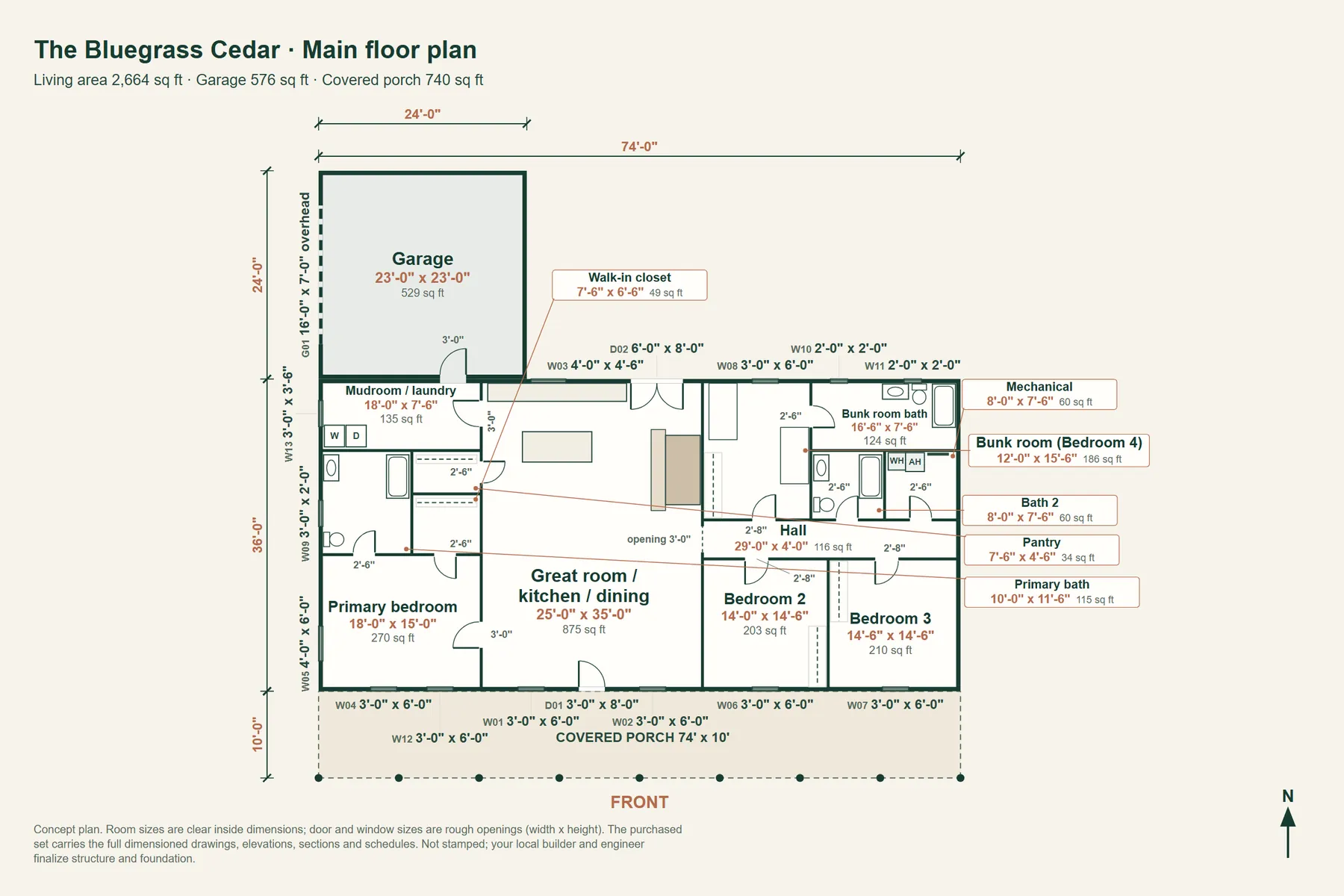

The Bluegrass Cedar: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 74 ft wide by 60 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 8:12 pitch, 18 in overhangs
Eave 11'-0", ridge 23'-0"
Ridge runs left-to-right, parallel to the front wall
Shed dormer on the front roof slope, 8 ft wide, starting 20 ft 6 in from the left corner, about 4 ft tall (shed dormer with a window pair over the great room)
Shed dormer on the front roof slope, 8 ft wide, starting 34 ft 6 in from the left corner, about 4 ft tall (shed dormer with a window pair over the great room)
Chimney above the Great room / kitchen / dining (3 ft wide), centered 42 ft from the left end of the house (as you face the front), through the rear roof slope, 7 ft 6 in from the ridge; its top is 25 ft above the floor, 2 ft above the ridge
Masses: House: 74' x 36', living space, eave 11'-0", ridge 23'-0"
Garage: 24' x 24', eave 10'-0", ridge 18'-0"
Porches: Front porch: 74' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 9 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 13 windows, 2 exterior doors, 1 overhead door, 9 porch posts

Rooms

Room	Size	Area
Primary bedroom	18'-0" x 15'-0"	270 sq ft
Primary bath	10'-0" x 11'-6"	115 sq ft
Walk-in closet	7'-6" x 6'-6"	49 sq ft
Pantry	7'-6" x 4'-6"	34 sq ft
Mudroom / laundry	18'-0" x 7'-6"	135 sq ft
Great room / kitchen / dining	25'-0" x 35'-0"	875 sq ft
Bedroom 2	14'-0" x 14'-6"	203 sq ft
Bedroom 3	14'-6" x 14'-6"	210 sq ft
Hall	29'-0" x 4'-0"	116 sq ft
Bunk room (Bedroom 4)	12'-0" x 15'-6"	186 sq ft
Bath 2	8'-0" x 7'-6"	60 sq ft
Mechanical	8'-0" x 7'-6"	60 sq ft
Bunk room bath	16'-6" x 7'-6"	124 sq ft
Garage	23'-0" x 23'-0"	529 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Casement window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Casement window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 3	Front
W08	Casement window	3'-0" x 6'-0"	2'-0"	Bunk room (Bedroom 4)	Rear
W09	Window	3'-0" x 2'-0"	5'-0"	Primary bath	Left side
W10	Window	2'-0" x 2'-0"	5'-0"	Bunk room bath	Rear
W11	Window	2'-0" x 2'-0"	5'-0"	Bunk room bath	Rear
W12	Casement window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W13	Window	3'-0" x 3'-6"	3'-6"	Mudroom / laundry	Left side
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
G01	Overhead door	16'-0" x 7'-0"	no sill	Garage	Left side

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
