About The Gathering Barn

The Gathering Barn is made for hosting: a covered outdoor kitchen with a stone fireplace and a long bar sits right under the main roof, a huge island seats six, and the dining room fits ten. Warm white siding, cedar accents and a game room round out a home where everyone wants to be.

Highlights

Covered outdoor kitchen with stone fireplace
Island seating for six
Dining for ten
Game room
Butler's pantry

Best for: Hosts, big families and holiday headquarters.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Large luxury barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Gathering Barn

Who it suits

The Gathering Barn suits people who host. The island seats 6 and the dining area fits 10, and the outdoor kitchen is a roofed pavilion at the right end, joined to the great room by a 12 ft glass door.

Room by room

Front door: a 6 ft double door on the 72 ft front porch opens into the great room, 20 x 39 ft, which holds the kitchen island and dining area.
Butler’s pantry: 8 ft 6 in by 12 ft, off the great room.
Outdoor kitchen: the 12 ft glass door on the right wall opens to the covered pavilion and its stone fireplace.
Hall: a hall 50 ft 6 in long leads to the game room, Bedroom 2, Bedroom 3, Bedroom 4, Bath 2, Bath 3 and the primary suite.
Mudroom: the mudroom and laundry sits between the hall and the garage.

Build notes

The open-air pavilion, 24 x 40 ft, shares the house’s 6:12 roof, with the eave at 11 ft and the ridge at 21 ft, and a 24 ft wide cross gable on the front marks it.
The pavilion chimney is 3 ft wide, comes through the rear roof slope and ends below the ridge.
The garage is 24 x 40 ft with 2 overhead doors, each 9 x 8 ft, on its left side. Where the mudroom meets the garage, fire separation rules vary by place, so your builder confirms them.
The 72 ft front porch is 10 ft deep on 9 posts.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

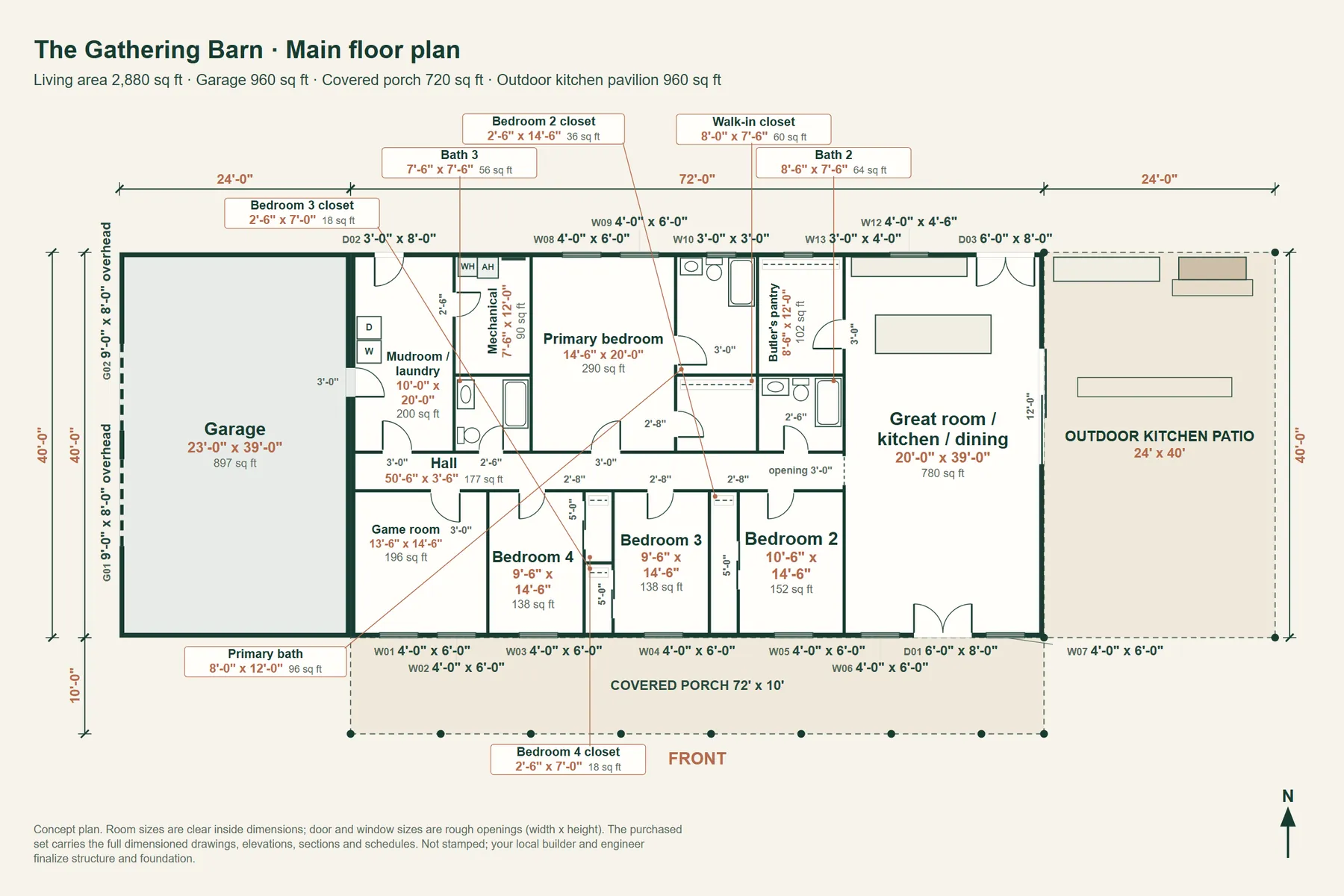

The Gathering Barn: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 120 ft wide by 40 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-0", ridge 21'-0"
Ridge runs left-to-right, parallel to the front wall
Cross gable on the front: a 6:12 gable 24 ft wide, starting 72 ft from the left corner of the front wall, over the Outdoor kitchen pavilion
Chimney above the Outdoor kitchen patio (3 ft wide), centered 17 ft 6 in from the left end of the pavilion (as you face the front), through the rear roof slope, 18 ft 4 in from the ridge; its top is 19 ft 3 in above the floor, below the ridge
Masses: House: 72' x 40', living space, eave 11'-0", ridge 21'-0"
Garage: 24' x 40', eave 11'-0", ridge 21'-0"
Outdoor kitchen pavilion: 24' x 40', open-air, eave 11'-0", ridge 21'-0"
Porches: Front porch: 72' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 9 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 12 windows, 4 exterior doors, 2 overhead doors, 9 porch posts

Rooms

Room	Size	Area
Game room	13'-6" x 14'-6"	196 sq ft
Bedroom 4	9'-6" x 14'-6"	138 sq ft
Bedroom 3 closet	2'-6" x 7'-0"	18 sq ft
Bedroom 4 closet	2'-6" x 7'-0"	18 sq ft
Bedroom 3	9'-6" x 14'-6"	138 sq ft
Bedroom 2 closet	2'-6" x 14'-6"	36 sq ft
Bedroom 2	10'-6" x 14'-6"	152 sq ft
Hall	50'-6" x 3'-6"	177 sq ft
Mudroom / laundry	10'-0" x 20'-0"	200 sq ft
Bath 3	7'-6" x 7'-6"	56 sq ft
Mechanical	7'-6" x 12'-0"	90 sq ft
Primary bedroom	14'-6" x 20'-0"	290 sq ft
Walk-in closet	8'-0" x 7'-6"	60 sq ft
Primary bath	8'-0" x 12'-0"	96 sq ft
Bath 2	8'-6" x 7'-6"	64 sq ft
Butler's pantry	8'-6" x 12'-0"	102 sq ft
Great room / kitchen / dining	20'-0" x 39'-0"	780 sq ft
Garage	23'-0" x 39'-0"	897 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	4'-0" x 6'-0"	2'-0"	Game room	Front
W02	Window	4'-0" x 6'-0"	2'-0"	Game room	Front
W03	Window	4'-0" x 6'-0"	2'-0"	Bedroom 4	Front
W04	Window	4'-0" x 6'-0"	2'-0"	Bedroom 3	Front
W05	Window	4'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W06	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W07	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W08	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Rear
W09	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Rear
W10	Window	3'-0" x 3'-0"	5'-0"	Primary bath	Rear
W12	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W13	Window	3'-0" x 4'-0"	4'-0"	Butler's pantry	Rear
D01	Double entry door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Door	3'-0" x 8'-0"	no sill	Mudroom / laundry	Rear
D03	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D04	Glass door to the Outdoor kitchen patio	12'-0" x 8'-0"	no sill	Great room / kitchen / dining	Right side
G01	Overhead door	9'-0" x 8'-0"	no sill	Garage	Left side
G02	Overhead door	9'-0" x 8'-0"	no sill	Garage	Left side

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
