About The Wren Hollow

The Wren Hollow goes up as well as out: a tall front gable with a big window lights a two-story great room, and a loft overlooks it all. A wraparound porch, four bedrooms and a main-floor primary suite make it a true family home.

Highlights

Two-story great room
Loft family lounge
Wraparound porch
Main-floor primary suite
Four bedrooms

Best for: Larger families who want height and light.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · 2 story and loft barndominium plans · Large luxury barndominium floor plans · Farmhouse barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Wren Hollow

Who it suits

The Wren Hollow suits larger households that want height and light. The primary suite and Bedroom 2 are on the main floor, with Bedroom 3 and Bedroom 4 upstairs, along with a loft lounge.

Room by room

Front door: a 5 ft wide double door opens into a 2-story great room lit by a large gable window from about 12 ft 6 in up.
Main floor: the primary suite, the pantry and Bedroom 2, which has its own bath, open off the great room.
Mudroom: the mudroom and laundry holds the powder room, a 3 ft door on the left wall and the door to the garage.
Upstairs: a west gallery hall, 35 ft long, leads to Bedroom 3, Bath 3 and Bedroom 4.
Loft: a 22 ft bridge from the gallery leads on to the loft lounge and a storage room.

Build notes

The roof is 10:12 with 24 in overhangs, 19 ft to the eave and 34 ft to the ridge. A 10:12 cross gable, 23 ft wide, rises over the great room.
The garage wing is attached to the back toward the left end, with a pair of 9 x 7 ft overhead doors facing the rear. Your builder confirms the fire separation your code requires at the mudroom door.
The wraparound porch runs 50 ft across the front, then 36 ft down the right side, on 14 posts.
Two floors, a bridge and a loft are for your engineer to design, starting from the single interior bearing line on the plan.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

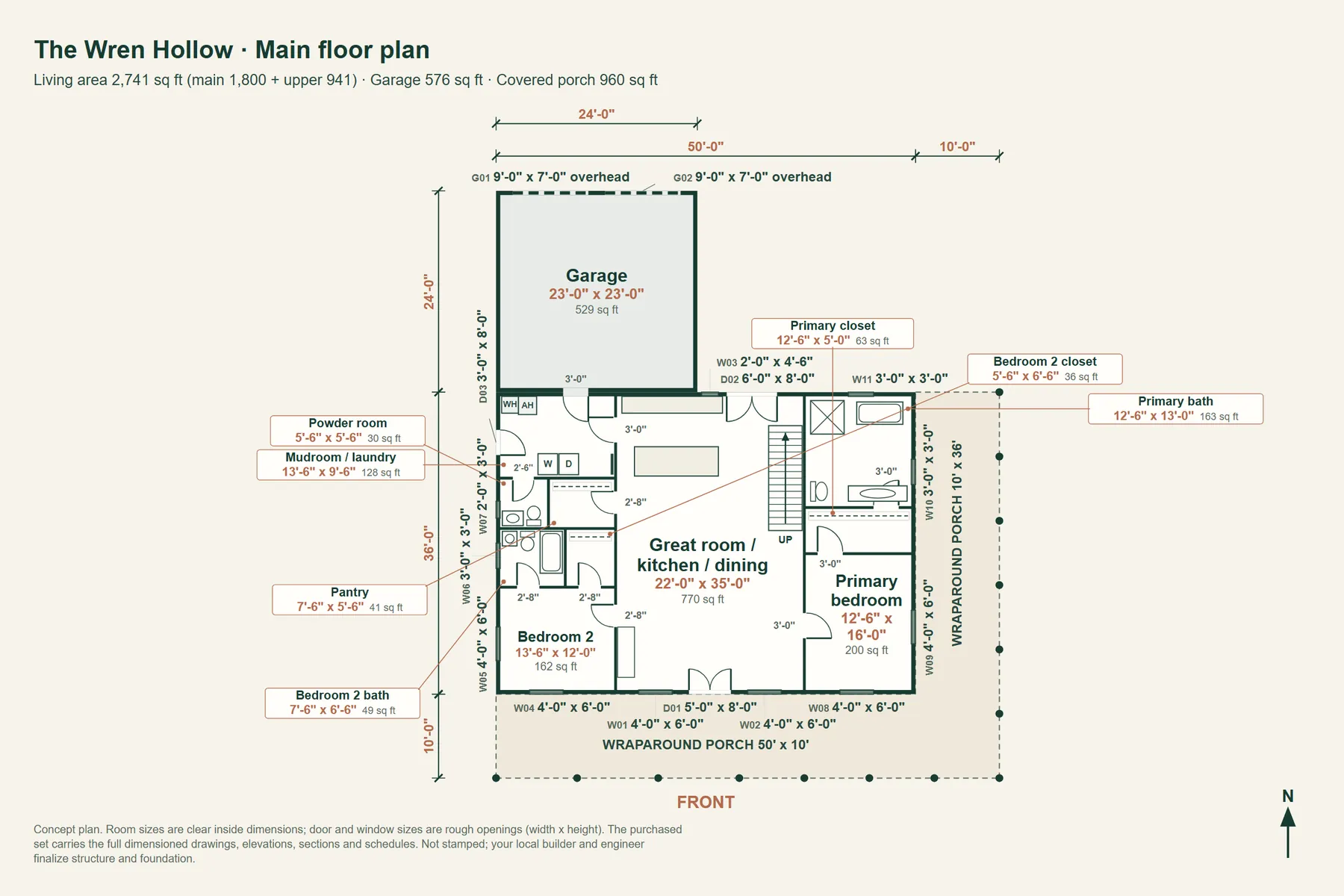

The Wren Hollow: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

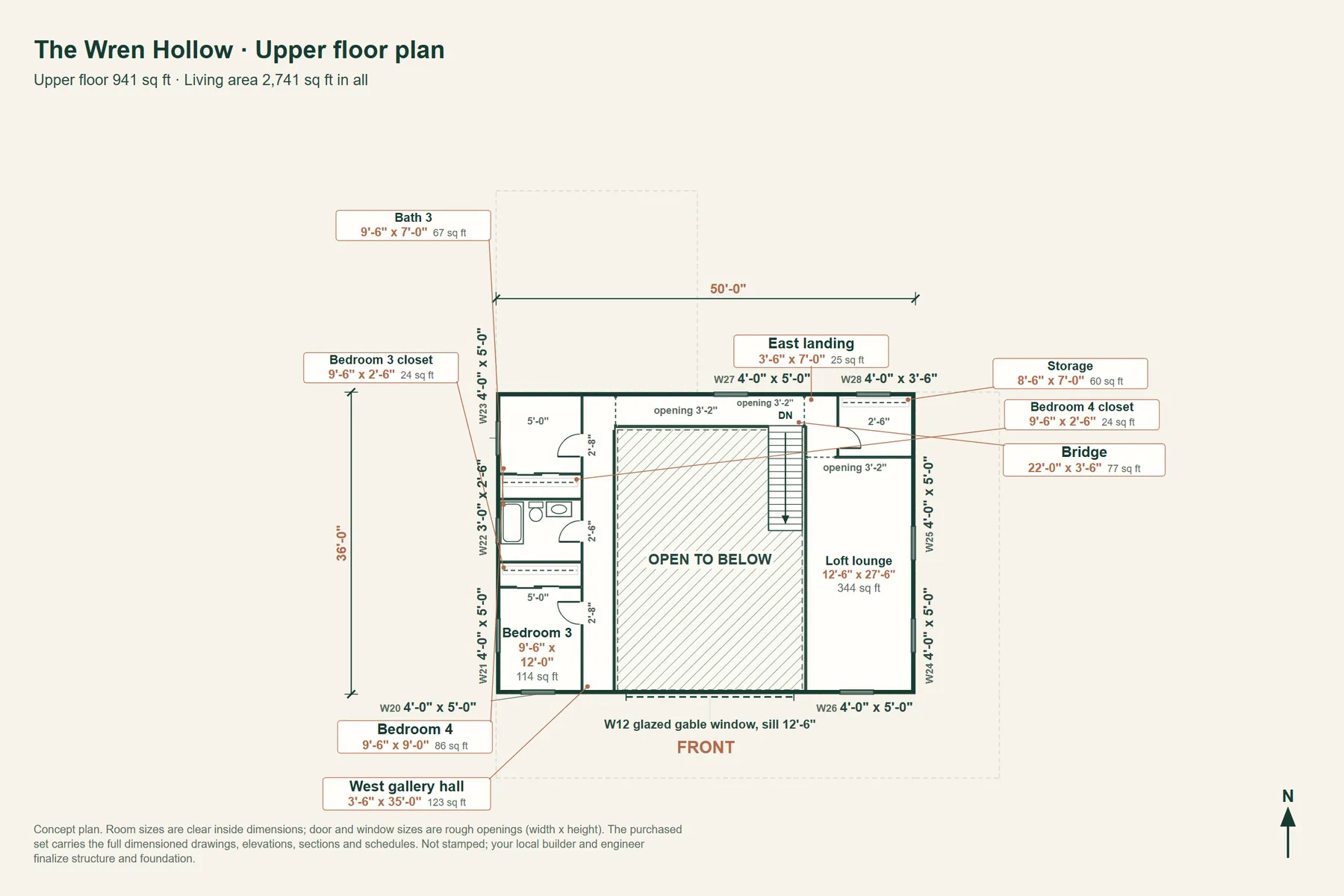

The Wren Hollow: upper floor plan with room dimensions and door and window sizes — Upper floor plan. Tap to open full size.

Overall footprint: 50 ft wide by 60 ft deep, the buildings' footprint without porches and decks
Stories: 2 stories
Roof (main house): 10:12 pitch, 24 in overhangs
Eave 19'-0", ridge 34'-0"
Ridge runs left-to-right, parallel to the front wall
Cross gable on the front: a 10:12 gable 23 ft wide, starting 14 ft from the left corner of the front wall, over the Great room / kitchen / dining (large gable window from about 12 ft 6 in up toward the peak, lighting the two-story great room)
Masses: House: 50' x 36', living space, eave 19'-0", ridge 34'-0"
Garage: 24' x 24', eave 9'-0", ridge 19'-0"
Porches: Wraparound porch: 50' x 10' front, 36' x 10' right, 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 14 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. One interior bearing line is shown on the plan. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 20 windows, 3 exterior doors, 2 overhead doors, 14 porch posts

Rooms

Room	Floor	Size	Area
Bedroom 2	1	13'-6" x 12'-0"	162 sq ft
Bedroom 2 bath	1	7'-6" x 6'-6"	49 sq ft
Bedroom 2 closet	1	5'-6" x 6'-6"	36 sq ft
Powder room	1	5'-6" x 5'-6"	30 sq ft
Pantry	1	7'-6" x 5'-6"	41 sq ft
Mudroom / laundry	1	13'-6" x 9'-6"	128 sq ft
Great room / kitchen / dining	1	22'-0" x 35'-0"	770 sq ft
Primary bedroom	1	12'-6" x 16'-0"	200 sq ft
Primary closet	1	12'-6" x 5'-0"	62 sq ft
Primary bath	1	12'-6" x 13'-0"	162 sq ft
Garage	1	23'-0" x 23'-0"	529 sq ft
Bedroom 3	2	9'-6" x 12'-0"	114 sq ft
Bedroom 3 closet	2	9'-6" x 2'-6"	24 sq ft
Bath 3	2	9'-6" x 7'-0"	66 sq ft
Bedroom 4 closet	2	9'-6" x 2'-6"	24 sq ft
Bedroom 4	2	9'-6" x 9'-0"	86 sq ft
West gallery hall	2	3'-6" x 35'-0"	122 sq ft
Bridge	2	22'-0" x 3'-6"	77 sq ft
Loft lounge	2	12'-6" x 27'-6"	344 sq ft
East landing	2	3'-6" x 7'-0"	24 sq ft
Storage	2	8'-6" x 7'-0"	60 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall	Floor
W01	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front	1
W02	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front	1
W03	Window	2'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear	1
W04	Window	4'-0" x 6'-0"	2'-0"	Bedroom 2	Front	1
W05	Window	4'-0" x 6'-0"	2'-0"	Bedroom 2	Left side	1
W06	Window	3'-0" x 3'-0"	5'-0"	Bedroom 2 bath	Left side	1
W07	Window	2'-0" x 3'-0"	5'-0"	Powder room	Left side	1
W08	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Front	1
W09	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Right side	1
W10	Window	3'-0" x 3'-0"	5'-0"	Primary bath	Right side	1
W11	Window	3'-0" x 3'-0"	5'-0"	Primary bath	Rear	1
W20	Window	4'-0" x 5'-0"	2'-6"	Bedroom 3	Front	2
W21	Window	4'-0" x 5'-0"	2'-6"	Bedroom 3	Left side	2
W22	Window	3'-0" x 2'-6"	5'-0"	Bath 3	Left side	2
W23	Window	4'-0" x 5'-0"	2'-6"	Bedroom 4	Left side	2
W24	Window	4'-0" x 5'-0"	2'-6"	Loft lounge	Right side	2
W25	Window	4'-0" x 5'-0"	2'-6"	Loft lounge	Right side	2
W26	Window	4'-0" x 5'-0"	2'-6"	Loft lounge	Front	2
W27	Window	4'-0" x 5'-0"	2'-6"	Bridge	Rear	2
W28	Window	4'-0" x 3'-6"	4'-0"	Storage	Rear	2
D01	Double entry door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front	1
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear	1
D03	Door	3'-0" x 8'-0"	no sill	Mudroom / laundry	Left side	1
G01	Overhead door	9'-0" x 7'-0"	no sill	Garage	Rear	1
G02	Overhead door	9'-0" x 7'-0"	no sill	Garage	Rear	1

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
