About The Loblolly

The Loblolly sets black board-and-batten and a black metal roof against a full front porch on cedar posts. Inside, three bedrooms share a hall on the left, while the primary suite has the right end of the house. The great room runs from the front entry toward the kitchen and a covered back porch. A lower garage wing sits four feet behind the house front, with a mudroom and laundry space on the way in.

Highlights

Full-width 10-ft front porch
16 x 10 ft covered back porch
Three bedrooms off a separate hall
Walk-in pantry and powder room
Setback two-car garage wing

Best for: A larger household that wants bedrooms grouped apart from the primary suite.

This plan is in: 4 bedroom barndominium floor plans · Barndominium with garage floor plans · Modern barndominium floor plans · Farmhouse barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Loblolly

Who it suits

The Loblolly fits a household that wants a bedroom hall separate from the primary suite. The garage wing meets the mudroom at the left end, four feet behind the house front.

Room by room

Front entry: a 3 ft door opens into the great room, with a 3 ft 6 in wide window on either side.
Left hall: Bedrooms 2, 3 and 4, Bath 2 and the mudroom and laundry space open from it; the hall joins the great room through a cased opening.
Primary suite: the bedroom is 14 ft by 17 ft 6 in at the right end, with windows on the front and right walls and doors to its bath and walk-in closet.
Kitchen side: the walk-in pantry and powder room open from the great room, whose 5 ft rear glass door faces the covered porch.

Build notes

The main house has a 7:12 gable roof with an 11 ft eave; the lower garage gable stops against its left end wall.
A 60 x 10 ft front porch sits on 7 posts, and the covered back porch is 16 x 10 ft on 3 posts.
The garage is 24 x 24 ft, set back 4 ft, with two 9 x 8 ft overhead doors facing the front.
Conventional wood framing is shown. A builder or engineer handles any steel or post-frame adaptation and sizes the structure, footings and connections for the site.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

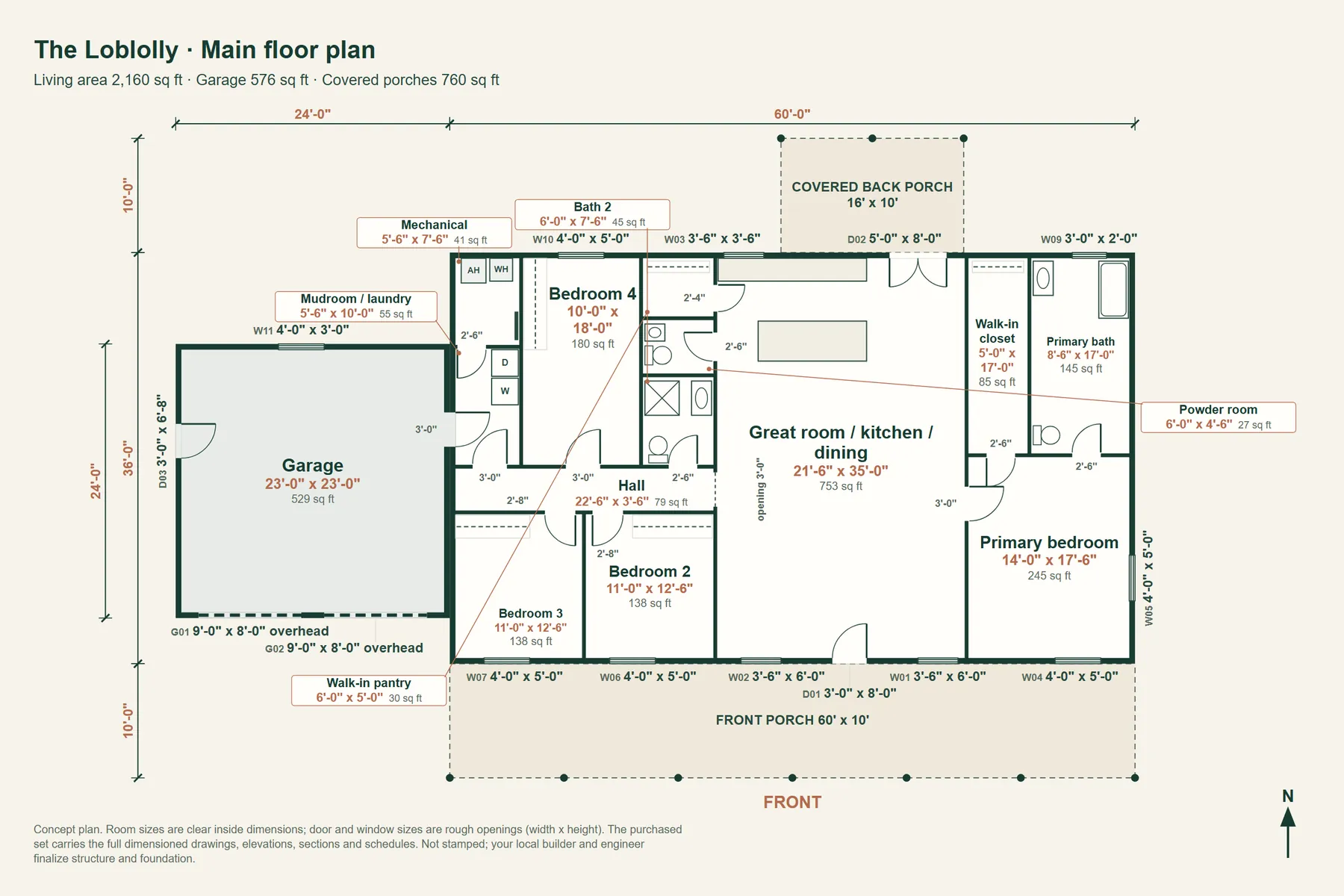

The Loblolly: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 84 ft wide by 36 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 7:12 pitch, 18 in overhangs
Eave 11'-0", ridge 21'-6"
Ridge runs left-to-right, parallel to the front wall
Masses: House: 60' x 36', living space, eave 11'-0", ridge 21'-6"
Garage: 24' x 24', eave 10'-0", ridge 17'-0"
Porches: Front porch: 60' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 7 posts
Covered back porch: 16' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 3 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 10 windows, 3 exterior doors, 2 overhead doors, 10 porch posts

Rooms

Room	Size	Area
Bedroom 3	11'-0" x 12'-6"	138 sq ft
Bedroom 2	11'-0" x 12'-6"	138 sq ft
Hall	22'-6" x 3'-6"	79 sq ft
Mudroom / laundry	5'-6" x 10'-0"	55 sq ft
Mechanical	5'-6" x 7'-6"	41 sq ft
Bedroom 4	10'-0" x 18'-0"	180 sq ft
Bath 2	6'-0" x 7'-6"	45 sq ft
Powder room	6'-0" x 4'-6"	27 sq ft
Walk-in pantry	6'-0" x 5'-0"	30 sq ft
Great room / kitchen / dining	21'-6" x 35'-0"	752 sq ft
Primary bedroom	14'-0" x 17'-6"	245 sq ft
Walk-in closet	5'-0" x 17'-0"	85 sq ft
Primary bath	8'-6" x 17'-0"	144 sq ft
Garage	23'-0" x 23'-0"	529 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-6" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	3'-6" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	3'-6" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Casement window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Front
W05	Casement window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Right side
W06	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 2	Front
W07	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 3	Front
W09	Window	3'-0" x 2'-0"	5'-0"	Primary bath	Rear
W10	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 4	Rear
W11	Window	4'-0" x 3'-0"	4'-0"	Garage	Rear
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D03	Door	3'-0" x 6'-8"	no sill	Garage	Left side
G01	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front
G02	Overhead door	9'-0" x 8'-0"	no sill	Garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
