About The Lone Star Wrap

The Lone Star Wrap wraps its porch around the front and side so there's always a shady seat, wherever the sun is. Ivory siding, a limestone base and a charcoal roof give it a timeless ranch look, and the attached three-car garage handles trucks, toys and tools. Inside, a limestone fireplace and French doors from the primary bedroom keep the porch in reach.

Highlights

Wraparound porch on cedar posts with stone bases
Attached three-car garage
Limestone fireplace
Primary bedroom opens to the porch
Kids' bunk room

Best for: Families with land, trucks and a love of porches.

This plan is in: 3 bedroom barndominium floor plans · Barndominium with garage floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Lone Star Wrap

Who it suits

The Lone Star Wrap fits households with land, trucks and a taste for porches. The porch wraps the front and the left end, giving shade on 2 sides of the house, and the garage wing at the right end has 3 bays.

Room by room

Front door: double doors, 5 ft wide in all, open into the great room, kitchen and dining area, with the limestone fireplace in the same room.
Pantry and mudroom: both open off the great room, and the mudroom is the way into the garage.
Primary suite: a 5 ft glass door on the left wall steps out onto the wraparound porch, and the suite has its own bath and walk-in closet.
Bedrooms: Bedroom 2, Bedroom 3 and Bath 2 each have a door straight into the great room.

Build notes

The porch is 10 ft deep, 56 ft along the front and 36 ft down the left end, on 13 posts under a 3:12 shed roof.
The house roof is 6:12 with its ridge at 20 ft. The garage wing has a lower roof, 10 ft to the eave and 17 ft 6 in to the ridge.
Three 9 x 7 ft overhead doors face the front. Ask your builder what fire separation your code wants at the mudroom door into the garage.
The chimney passes through the front roof slope, 11 ft from the ridge.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

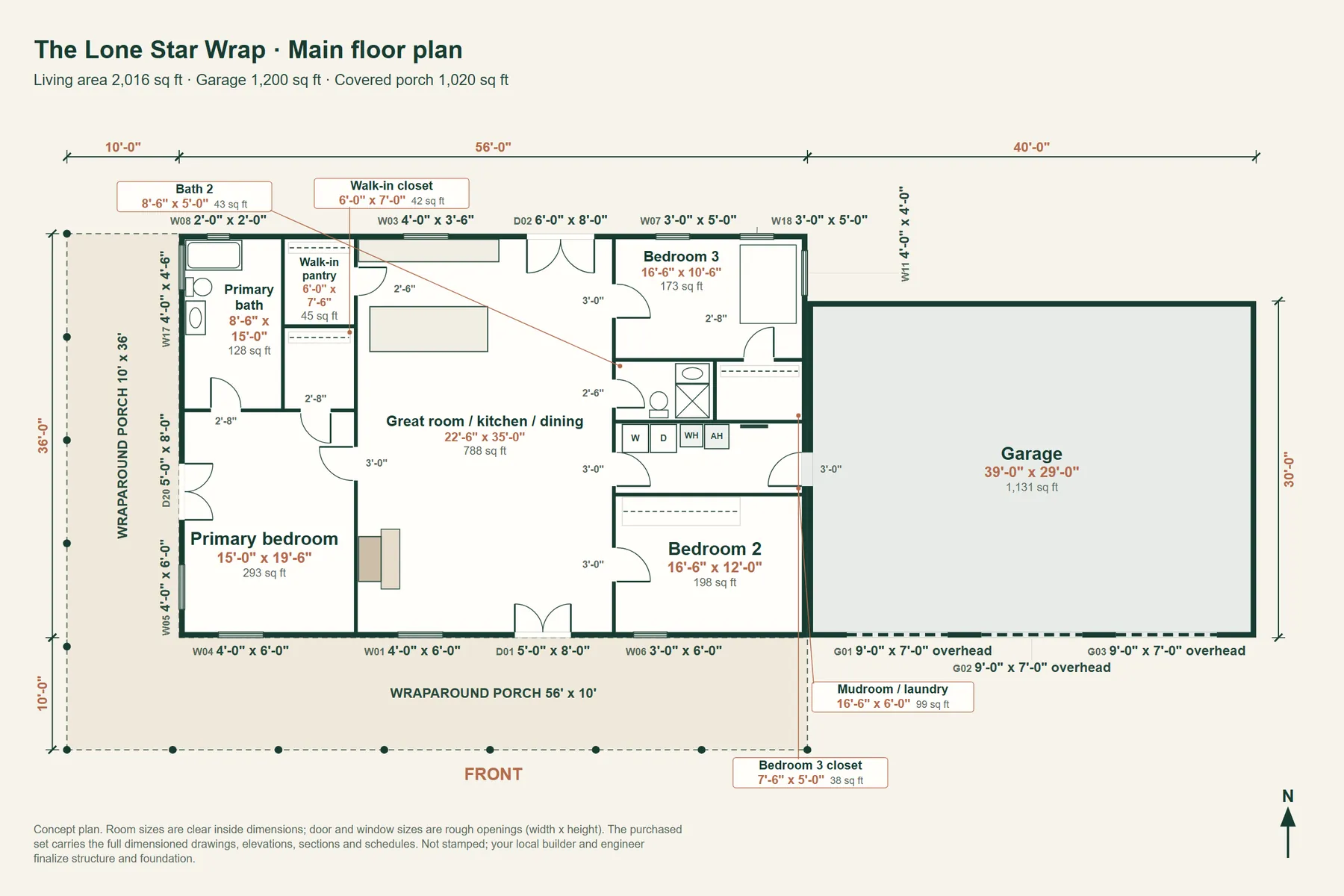

The Lone Star Wrap: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 96 ft wide by 36 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-0", ridge 20'-0"
Ridge runs left-to-right, parallel to the front wall
Chimney above the Great room / kitchen / dining (3 ft wide), centered 17 ft from the left end of the house (as you face the front), through the front roof slope, 11 ft from the ridge; its top is 21 ft 11 in above the floor, 1 ft 11 in above the ridge
Masses: House: 56' x 36', living space, eave 11'-0", ridge 20'-0"
Garage: 40' x 30', eave 10'-0", ridge 17'-6"
Porches: Wraparound porch: 56' x 10' front, 36' x 10' left, 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 13 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 10 windows, 3 exterior doors, 3 overhead doors, 13 porch posts

Rooms

Room	Size	Area
Primary bedroom	15'-0" x 19'-6"	292 sq ft
Primary bath	8'-6" x 15'-0"	128 sq ft
Walk-in closet	6'-0" x 7'-0"	42 sq ft
Walk-in pantry	6'-0" x 7'-6"	45 sq ft
Great room / kitchen / dining	22'-6" x 35'-0"	788 sq ft
Bedroom 2	16'-6" x 12'-0"	198 sq ft
Mudroom / laundry	16'-6" x 6'-0"	99 sq ft
Bath 2	8'-6" x 5'-0"	42 sq ft
Bedroom 3 closet	7'-6" x 5'-0"	38 sq ft
Bedroom 3	16'-6" x 10'-6"	173 sq ft
Garage	39'-0" x 29'-0"	1,131 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Window	3'-0" x 5'-0"	2'-0"	Bedroom 3	Rear
W08	Window	2'-0" x 2'-0"	5'-0"	Primary bath	Rear
W11	Window	4'-0" x 4'-0"	3'-0"	Bedroom 3	Right side
W17	Window	4'-0" x 4'-6"	3'-6"	Primary bath	Left side
W18	Window	3'-0" x 5'-0"	2'-0"	Bedroom 3	Rear
D01	Double entry door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D20	Glass slider or French door	5'-0" x 8'-0"	no sill	Primary bedroom	Left side
G01	Overhead door	9'-0" x 7'-0"	no sill	Garage	Front
G02	Overhead door	9'-0" x 7'-0"	no sill	Garage	Front
G03	Overhead door	9'-0" x 7'-0"	no sill	Garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
