About The Pedernales

The Pedernales borrows from the Texas Hill Country: a chopped limestone base, a tall stone chimney, a silver metal roof and a 12-foot-deep porch on rough cedar posts. Inside, a floor-to-ceiling limestone fireplace, mesquite-toned wood and leather make the great room the heart of the home, and a pergola patio with an outdoor fireplace extends it outside.

Highlights

Chopped limestone wainscot and chimney
12-ft-deep shaded front porch
Floor-to-ceiling limestone fireplace
Outdoor fireplace under a cedar pergola
Third bedroom doubles as a study

Best for: Texas buyers and anyone who loves stone and cedar.

This plan is in: 3 bedroom barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Pedernales

Who it suits

The Pedernales suits people who want stone-and-cedar Hill Country style with outdoor living front and back. A porch 12 ft deep spans the front, and the back patio has a pergola and its own fireplace. Bedroom 3 is also labeled a study.

Room by room

Front door: a pair of doors, 5 ft wide together, opens into the great room, 24 ft 6 in by 35 ft, where the limestone fireplace stands.
Everyday rooms: the powder room, laundry, pantry and coat closet all open off the great room.
Primary suite: 21 ft by 19 ft, with a bath, a walk-in closet and a door into the great room.
Bedrooms: a hall leads to Bedroom 2, which has its own closet, then Bath 2 and Bedroom 3 / study.
Rear patio: through an 8 ft glass door you reach a patio 26 x 12 ft with a cedar pergola and an outdoor fireplace.

Build notes

The roof is 6:12 with 11 ft 6 in eaves and a 20 ft 6 in ridge. The front porch is 68 ft long, with a 3:12 shed roof and 8 posts.
The indoor chimney is 3 ft wide and rises through the front roof slope 1 ft 3 in from the ridge. The outdoor fireplace is 6 ft wide masonry against the rear wall.
The patio has no roof. Your engineer sizes the footing under the outdoor fireplace.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

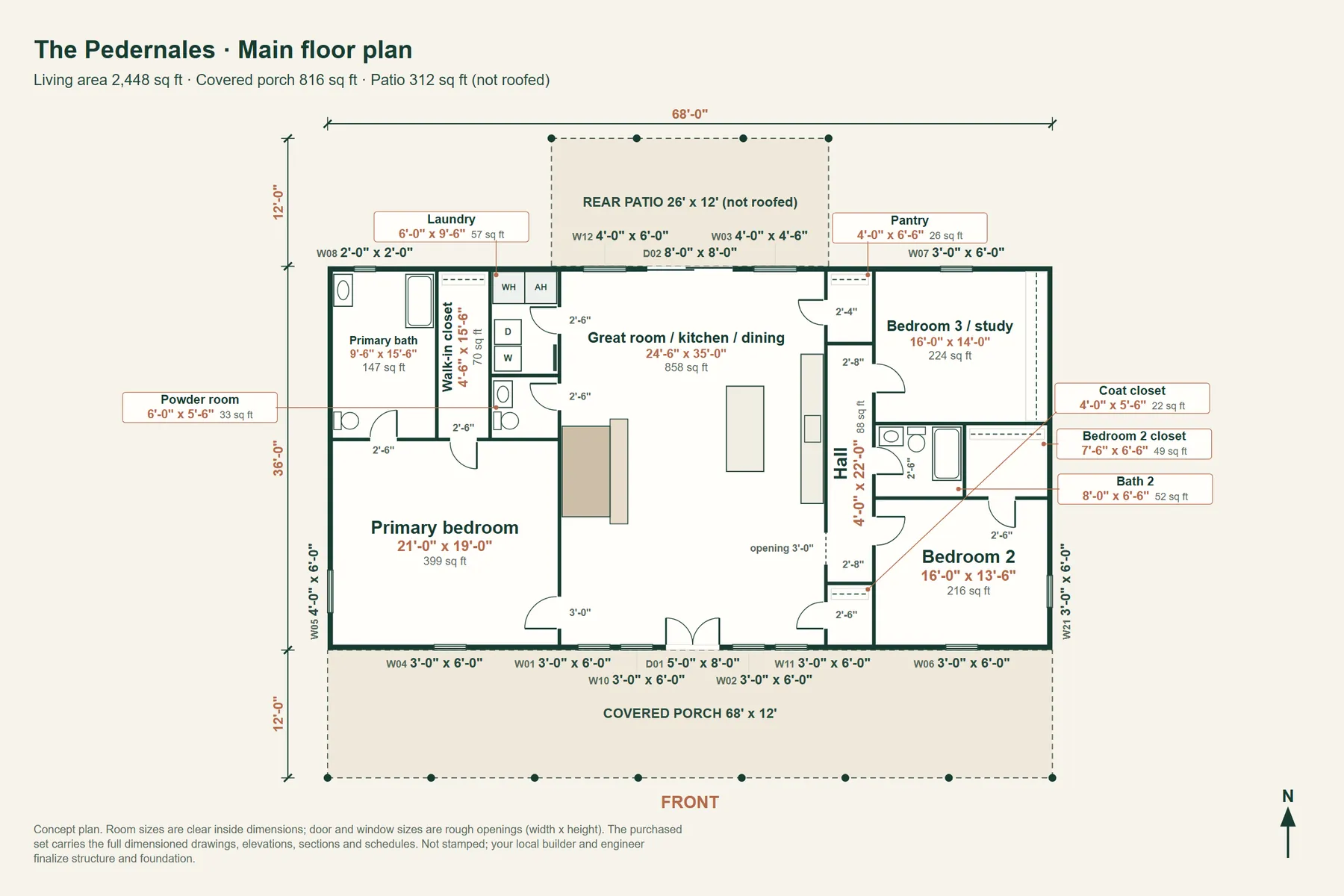

The Pedernales: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 68 ft wide by 36 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-6", ridge 20'-6"
Ridge runs left-to-right, parallel to the front wall
Chimney above the Great room / kitchen / dining (3 ft wide), centered 24 ft 3 in from the left end of the house (as you face the front), through the front roof slope, 1 ft 3 in from the ridge; its top is 23 ft 3-1/2 in above the floor, 2 ft 9-1/2 in above the ridge
Outdoor fireplace (6 ft wide masonry) on the Rear patio, open cedar pergola, outdoor fireplace (not roofed), 19 ft from its left end, against the house wall
Masses: House: 68' x 36', living space, eave 11'-6", ridge 20'-6"
Porches: Front porch: 68' x 12', 3:12 shed roof attached at 11 ft 6 in, beam 8 ft 6 in high at the posts, 8 posts
Rear patio, open cedar pergola, outdoor fireplace (not roofed): 26' x 12', not roofed (open patio or deck)
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads.
Counts: 12 windows, 2 exterior doors, 8 porch posts

Rooms

Room	Size	Area
Primary bedroom	21'-0" x 19'-0"	399 sq ft
Primary bath	9'-6" x 15'-6"	147 sq ft
Walk-in closet	4'-6" x 15'-6"	70 sq ft
Powder room	6'-0" x 5'-6"	33 sq ft
Laundry	6'-0" x 9'-6"	57 sq ft
Great room / kitchen / dining	24'-6" x 35'-0"	858 sq ft
Coat closet	4'-0" x 5'-6"	22 sq ft
Hall	4'-0" x 22'-0"	88 sq ft
Pantry	4'-0" x 6'-6"	26 sq ft
Bedroom 2	16'-0" x 13'-6"	216 sq ft
Bath 2	8'-0" x 6'-6"	52 sq ft
Bedroom 2 closet	7'-6" x 6'-6"	49 sq ft
Bedroom 3 / study	16'-0" x 14'-0"	224 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Casement window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Casement window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 3 / study	Rear
W08	Window	2'-0" x 2'-0"	5'-0"	Primary bath	Rear
W10	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W11	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W12	Window	4'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Rear
W21	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Right side
D01	Double entry door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	8'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
