About The Sandhill

The Sandhill trades stark black-and-white for something warmer: sand-beige siding, a dark bronze roof and a timber-framed entry gable that announces the front door. Inside, rough-sawn beams cross a 14-foot great room, a walnut-and-stone kitchen feels like a gathering place, and big windows frame the pasture. A rear porch with a cedar ceiling waits for slow evenings.

Highlights

Heavy timber entry gable
Warm sand-and-bronze exterior
14-ft great room with timber beams
Walnut and stone kitchen
Flex room that works as a home office

Best for: Buyers who want modern lines with natural warmth.

This plan is in: 3 bedroom barndominium floor plans · Modern barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Sandhill

Who it suits

The Sandhill suits people who want a modern ranch with a separate home office. The office opens off the entry, away from the living space, and a rear porch 66 ft long and 10 ft deep spans the whole back.

Room by room

Entry: the 6 ft double entry door opens into an entry hall, with a door to the office and an opening to the great room.
Great room: kitchen, dining and living share one room. The powder room and walk-in pantry open off it, and a 6 ft glass door leads to the rear porch.
Primary suite: 4 windows, 2 on the front wall and 2 on the left, plus a bath and a walk-in closet.
Bedrooms: Bedroom 2, Bedroom 3 and Bath 2 open off a hall, and both bedrooms have windows on the right wall.
Side entry: the laundry and mudroom has its own 3 ft door on the right wall.

Build notes

A small open-air timber gable, 10 ft wide and 8 ft deep, projects from the front toward the left end, with its ridge at 13 ft 1 in.
The main roof is 5:12, with eaves at 11 ft and the ridge at 18 ft 11 in, running left to right.
The front porch has 5 posts and the rear porch 8, both under 3:12 shed roofs, with posts and footings sized by your engineer.
The chimney leaves the rear roof slope 2 ft 6 in from the ridge.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

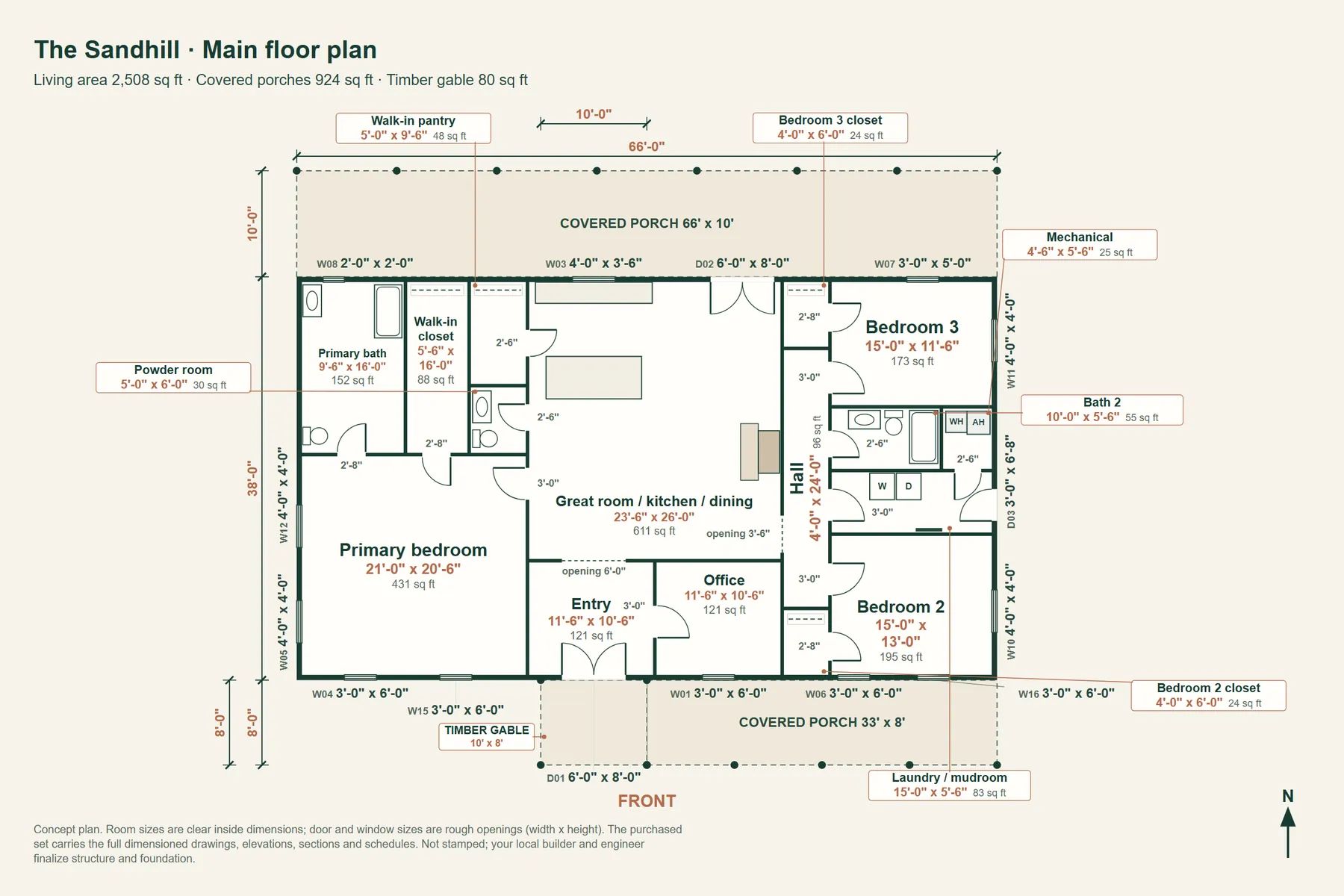

The Sandhill: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 66 ft wide by 46 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 5:12 pitch, 18 in overhangs
Eave 11'-0", ridge 18'-11"
Ridge runs left-to-right, parallel to the front wall
Chimney above the Great room / kitchen / dining (3 ft wide), centered 44 ft 6 in from the left end of the house (as you face the front), through the rear roof slope, 2 ft 6 in from the ridge; its top is 21 ft 2-1/2 in above the floor, 2 ft 3-1/2 in above the ridge
Masses: House: 66' x 38', living space, eave 11'-0", ridge 18'-11"
Timber gable: 10' x 8', open-air, eave 11'-0", ridge 13'-1"
Porches: Front porch: 33' x 8', 3:12 shed roof attached at 11 ft, beam 9 ft high at the posts, 5 posts
Rear porch: 66' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 8 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads.
Counts: 12 windows, 3 exterior doors, 13 porch posts

Rooms

Room	Size	Area
Primary bedroom	21'-0" x 20'-6"	430 sq ft
Primary bath	9'-6" x 16'-0"	152 sq ft
Walk-in closet	5'-6" x 16'-0"	88 sq ft
Powder room	5'-0" x 6'-0"	30 sq ft
Walk-in pantry	5'-0" x 9'-6"	48 sq ft
Entry	11'-6" x 10'-6"	121 sq ft
Office	11'-6" x 10'-6"	121 sq ft
Great room / kitchen / dining	23'-6" x 26'-0"	611 sq ft
Bedroom 2 closet	4'-0" x 6'-0"	24 sq ft
Hall	4'-0" x 24'-0"	96 sq ft
Bedroom 3 closet	4'-0" x 6'-0"	24 sq ft
Bedroom 2	15'-0" x 13'-0"	195 sq ft
Laundry / mudroom	15'-0" x 5'-6"	82 sq ft
Bath 2	10'-0" x 5'-6"	55 sq ft
Mechanical	4'-6" x 5'-6"	25 sq ft
Bedroom 3	15'-0" x 11'-6"	172 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Office	Front
W03	Window	4'-0" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Window	4'-0" x 4'-0"	3'-0"	Primary bedroom	Left side
W06	Window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Window	3'-0" x 5'-0"	2'-0"	Bedroom 3	Rear
W08	Window	2'-0" x 2'-0"	5'-0"	Primary bath	Rear
W10	Window	4'-0" x 4'-0"	3'-0"	Bedroom 2	Right side
W11	Window	4'-0" x 4'-0"	3'-0"	Bedroom 3	Right side
W12	Window	4'-0" x 4'-0"	3'-0"	Primary bedroom	Left side
W15	Window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W16	Window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
D01	Double entry door	6'-0" x 8'-0"	no sill	Entry	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D03	Door	3'-0" x 6'-8"	no sill	Laundry / mudroom	Right side

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
