About The Bitterroot

The Bitterroot puts an ash-gray home and a taller shop side by side beneath two parallel gable roofs. A timber front porch leads into a long great room, with a covered back porch off the kitchen. The mudroom and laundry space links the living area to the shop. Its 14 x 14 ft RV door and 39-ft clear depth suit coaches up to about 35 ft long; the second overhead door and a walk door face the front too.

Highlights

40 x 40 ft shop beside the home
14 x 14 ft RV door
Shop eave 16 ft 6 in high
10 x 10 ft second overhead door
10-ft front porch and covered back porch

Best for: Households seeking a shop for a coach up to about 35 ft long.

This plan is in: 3 bedroom barndominium floor plans · Barndominium plans with a shop · Small barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Bitterroot

Who it suits

The Bitterroot suits a household with a coach no longer than about 35 ft and a need for work space beside the home. The shop is attached on the right, with a mudroom and laundry space between it and the great room.

Room by room

Great room: a 3 ft front entry door stands beside a 5 ft wide window; the 5 ft rear glass door leads toward the covered porch.
Primary suite: the bedroom sits at the rear left with windows on the left and rear walls, plus doors to its bath and walk-in closet.
Other bedrooms: Bedroom 3 is at the front left, and Bedroom 2 is 9 x 12 ft at the front right of the home.
Shop: a 14 x 14 ft RV door, a 10 x 10 ft overhead door and a walk door face the front; its clear interior depth is 39 ft.

Build notes

The house and shop have parallel 6:12 gables. The house eave is 11 ft and its ridge is 21 ft; the shop eave is 16 ft 6 in and its ridge is 26 ft 6 in.
The house roof stops against the shop wall below the taller roof, with no valley shown.
A 40 x 10 ft timber front porch and a 14 x 10 ft covered back porch serve the home.
The drawings show conventional wood framing; a builder or engineer handles any steel or post-frame adaptation, and the builder confirms what local code requires between home and shop.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

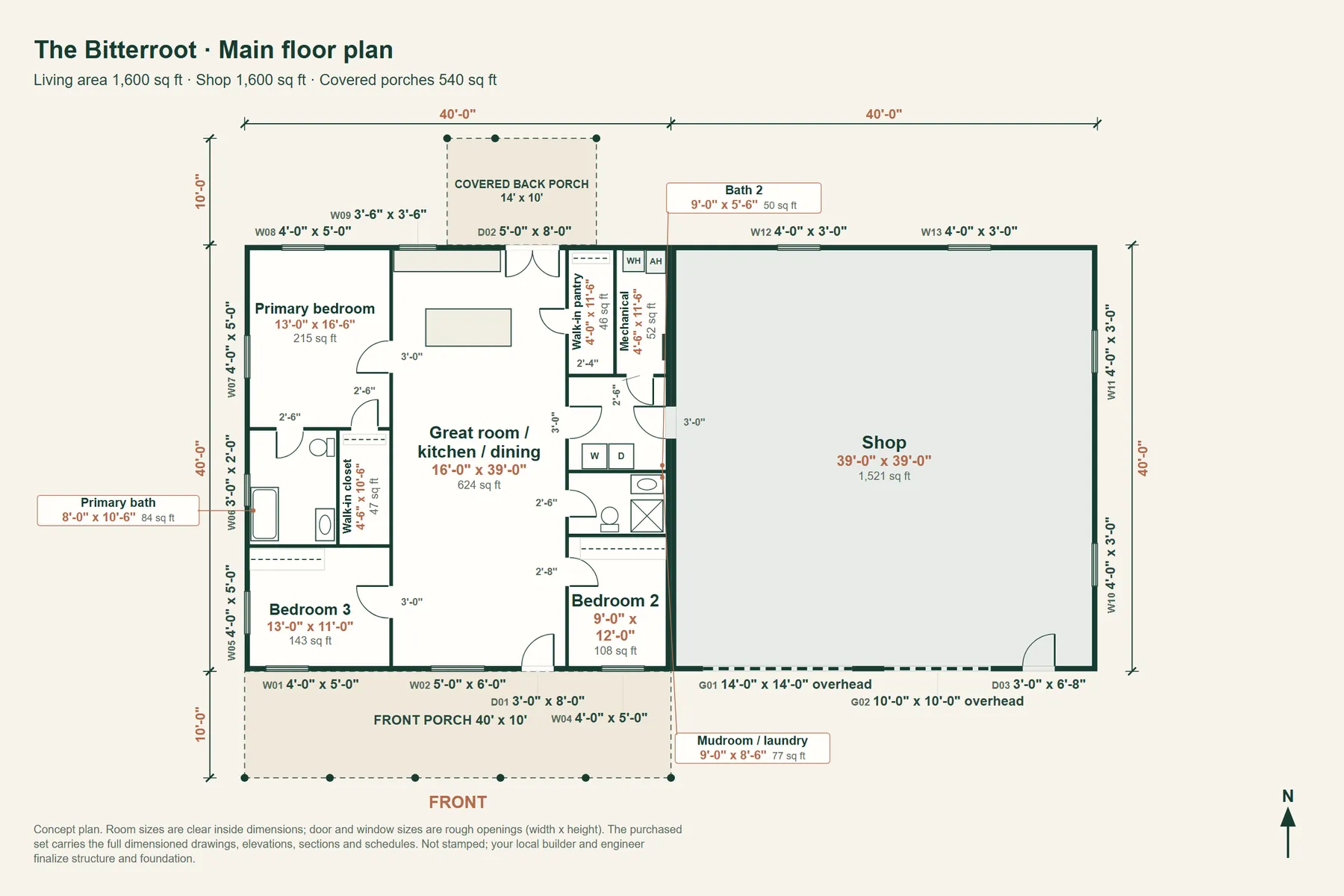

The Bitterroot: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 80 ft wide by 40 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 6:12 pitch, 18 in overhangs
Eave 11'-0", ridge 21'-0"
Ridge runs left-to-right, parallel to the front wall
Masses: House: 40' x 40', living space, eave 11'-0", ridge 21'-0"
Shop: 40' x 40', eave 16'-6", ridge 26'-6"
Porches: Front porch: 40' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 6 posts
Covered back porch: 14' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 3 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 12 windows, 3 exterior doors, 2 overhead doors, 9 porch posts

Rooms

Room	Size	Area
Bedroom 3	13'-0" x 11'-0"	143 sq ft
Primary bath	8'-0" x 10'-6"	84 sq ft
Walk-in closet	4'-6" x 10'-6"	47 sq ft
Primary bedroom	13'-0" x 16'-6"	214 sq ft
Great room / kitchen / dining	16'-0" x 39'-0"	624 sq ft
Bedroom 2	9'-0" x 12'-0"	108 sq ft
Bath 2	9'-0" x 5'-6"	50 sq ft
Mudroom / laundry	9'-0" x 8'-6"	76 sq ft
Walk-in pantry	4'-0" x 11'-6"	46 sq ft
Mechanical	4'-6" x 11'-6"	52 sq ft
Shop	39'-0" x 39'-0"	1,521 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 3	Front
W02	Window	5'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W04	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 2	Front
W05	Casement window	4'-0" x 5'-0"	2'-0"	Bedroom 3	Left side
W06	Window	3'-0" x 2'-0"	5'-0"	Primary bath	Left side
W07	Casement window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Left side
W08	Casement window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Rear
W09	Window	3'-6" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W10	Window	4'-0" x 3'-0"	6'-0"	Shop	Right side
W11	Window	4'-0" x 3'-0"	6'-0"	Shop	Right side
W12	Window	4'-0" x 3'-0"	6'-0"	Shop	Rear
W13	Window	4'-0" x 3'-0"	6'-0"	Shop	Rear
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	5'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D03	Door	3'-0" x 6'-8"	no sill	Shop	Front
G01	Overhead door	14'-0" x 14'-0"	no sill	Shop	Front
G02	Overhead door	10'-0" x 10'-0"	no sill	Shop	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
