About The Roadhouse RV

The Roadhouse RV is for people who travel: a tall RV bay with a 14 x 14 ft door sits beside a standard garage door, all part of one good-looking charcoal-and-cedar home. Inside, polished concrete, a cedar ceiling and a black steel fireplace keep things modern and easy to live in.

Highlights

14 x 14 ft RV door and tall RV bay
Additional 10 x 10 ft garage door
Charcoal metal with cedar accents
Black steel fireplace
Outdoor kitchen patio

Best for: RV owners, boaters and toy collectors.

This plan is in: 3 bedroom barndominium floor plans · Barndominium plans with a shop · Barndominium with garage floor plans · Modern barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Roadhouse RV

Who it suits

The Roadhouse RV suits owners of RVs, boats and other big toys. The bay is 49 ft deep inside behind a 14 x 14 ft door, and the specs say it fits coaches up to 45 ft. A second overhead door, 10 x 10 ft, sits beside it, so check both openings against your vehicles.

Room by room

Front door: the 3 ft entry on the 40 ft porch leads to the great room, 26 x 33 ft, with the kitchen and dining area.
Patio: a 6 ft glass door at the back leads to a patio with a pergola and an outdoor kitchen, open to the sky.
Primary suite: 17 ft by 18 ft 6 in, opening off the great room, with 2 casement windows, a bath and a walk-in closet.
Bedrooms: Bedroom 2, Bedroom 3 and Bath 2 line the hall off the great room.
Mudroom: the mudroom and laundry joins the hall to the RV bay and garage.

Build notes

The bay stands taller than the house: its eave is 16 ft and its ridge 21 ft, running front to back, against 10 ft 6 in and 16 ft 2 in for the house. Both roofs are 4:12.
Your engineer sizes the header over the 14 ft door and the framing for the tall bay walls.
Between the mudroom and the bay, local code sets rules for the wall and the door, and your builder confirms them.
A 4:12 cross gable, 16 ft wide, stands over part of the front porch, and a 3 ft side door serves the bay.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

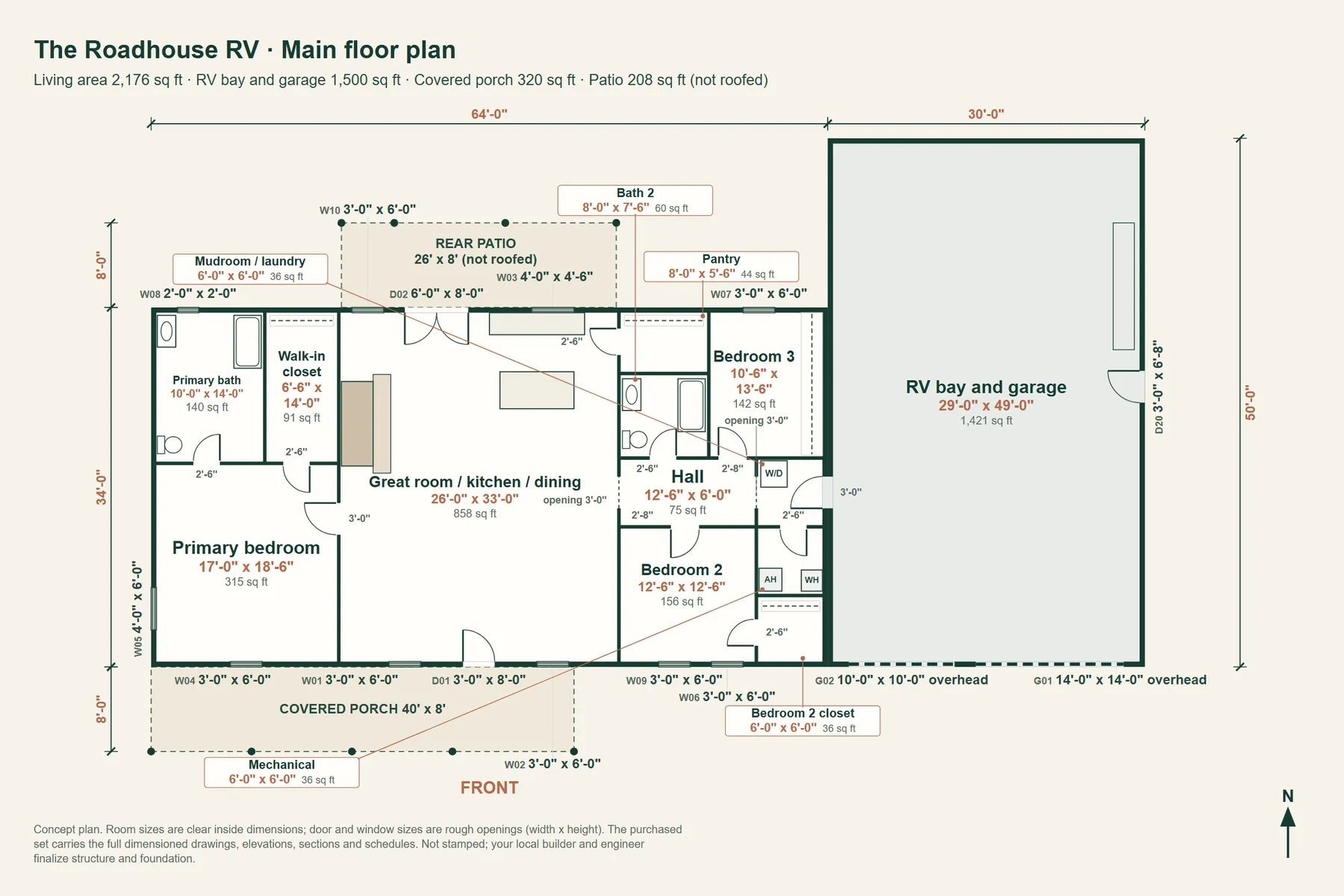

The Roadhouse RV: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 94 ft wide by 50 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 4:12 pitch, 18 in overhangs
Eave 10'-6", ridge 16'-2"
Ridge runs left-to-right, parallel to the front wall
Cross gable on the front: a 4:12 gable 16 ft wide, starting 23 ft from the left corner of the front wall, over the porch
Chimney above the Great room / kitchen / dining (3 ft wide), centered 19 ft 6 in from the left end of the house (as you face the front), through the rear roof slope, 6 ft from the ridge; its top is 18 ft 2 in above the floor, 2 ft above the ridge
Masses: House: 64' x 34', living space, eave 10'-6", ridge 16'-2"
RV bay and garage: 30' x 50', eave 16'-0", ridge 21'-0"
Porches: Front porch: 40' x 8', 3:12 shed roof attached at 10 ft 6 in, beam 8 ft 6 in high at the posts, 5 posts
Rear patio with pergola and outdoor kitchen (not roofed): 26' x 8', not roofed (open patio or deck)
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 10 windows, 3 exterior doors, 2 overhead doors, 5 porch posts

Rooms

Room	Size	Area
Primary bedroom	17'-0" x 18'-6"	314 sq ft
Primary bath	10'-0" x 14'-0"	140 sq ft
Walk-in closet	6'-6" x 14'-0"	91 sq ft
Great room / kitchen / dining	26'-0" x 33'-0"	858 sq ft
Bedroom 2	12'-6" x 12'-6"	156 sq ft
Bedroom 2 closet	6'-0" x 6'-0"	36 sq ft
Mechanical	6'-0" x 6'-0"	36 sq ft
Hall	12'-6" x 6'-0"	75 sq ft
Mudroom / laundry	6'-0" x 6'-0"	36 sq ft
Bath 2	8'-0" x 7'-6"	60 sq ft
Pantry	8'-0" x 5'-6"	44 sq ft
Bedroom 3	10'-6" x 13'-6"	142 sq ft
RV bay and garage	29'-0" x 49'-0"	1,421 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W02	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	4'-0" x 4'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Casement window	3'-0" x 6'-0"	2'-0"	Primary bedroom	Front
W05	Casement window	4'-0" x 6'-0"	2'-0"	Primary bedroom	Left side
W06	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W07	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 3	Rear
W08	Window	2'-0" x 2'-0"	5'-0"	Primary bath	Rear
W09	Casement window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W10	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Rear
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Glass slider or French door	6'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
D20	Door	3'-0" x 6'-8"	no sill	RV bay and garage	Right side
G01	Overhead door	14'-0" x 14'-0"	no sill	RV bay and garage	Front
G02	Overhead door	10'-0" x 10'-0"	no sill	RV bay and garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
