About The Whitfield

The Whitfield is the modern farmhouse done right: bright white board-and-batten, a steep black metal roof and black windows, with the two-car garage set back in its own wing beside the house. A screened back porch, a farmhouse kitchen with a butcher-block island, and a vaulted shiplap great room make it as livable as it is good-looking.

Highlights

Two-car garage wing set back from the front
Steep 8:12 black metal roof
Screened rear porch
Farmhouse kitchen with apron sink
Vaulted shiplap great room

Best for: Anyone who loves classic modern-farmhouse curb appeal.

This plan is in: 3 bedroom barndominium floor plans · Barndominium with garage floor plans · Modern barndominium floor plans · Farmhouse barndominium floor plans

In the $149 plan set

Builder-ready drawing set, dimensioned to the inch
Floor plan with every room, door and window located
Four exterior elevations
Building sections and roof plan
Door and window schedules
Electrical, smoke and CO placement diagram
Foundation outline
Editable CAD file (DXF) of the floor plan for your builder or drafter
Every concept rendering of the home, full-size
License to build one home

Completed by your local team

Structural design and member sizing (beams, footings, framing)
Engineering stamps or seals
Site-specific engineering, energy or code review
Permits or permit approval

Your local builder and, where your project needs one, a licensed engineer or architect complete these for your site and local codes.

Living in The Whitfield

Who it suits

The Whitfield suits anyone drawn to modern-farmhouse curb appeal who wants the garage kept out of the way. The garage wing sits at the right end with its front wall set back 10 ft, and it opens into the mudroom. A flex room at the back is yours to assign.

Room by room

Front door: the 3 ft entry door opens into a great room that runs the full depth of the house.
Pantry and powder room: both open off the great room.
Left side: Bedroom 2, Bath 2 and the primary suite, which has windows on the left and rear walls.
Right side: Bedroom 3 and the flex room, each with a window on the right wall, plus the mudroom and laundry that leads to the garage.
Back door: a 3 ft door at the rear of the great room leads to the screened porch, 42 ft long and 10 ft deep.

Build notes

A steep 8:12 roof, 11 ft to the eave and 25 ft to the ridge, runs front to back, so the gable ends face the street and the back yard.
The garage wing has its own 8:12 roof, 10 ft to the eave and 18 ft to the ridge, and 2 overhead doors, each 9 x 7 ft, on the front.
Where the garage meets the house, your builder confirms the fire separation your code requires.
Both porches have 3:12 shed roofs on 6 posts each. The chimney leaves the left roof slope 7 ft from the ridge.

The exterior and interior images are concept renderings of this design, not photographs of a built home. Finishes and fixtures are illustrative; the plan governs. The floor plan is drawn from the plan set. Areas are approximate and measured to the outside face of exterior walls; porches, garages and shops are listed separately.

Floor plan and specifications

Every room is dimensioned and every door and window carries its size, straight from the plan set.

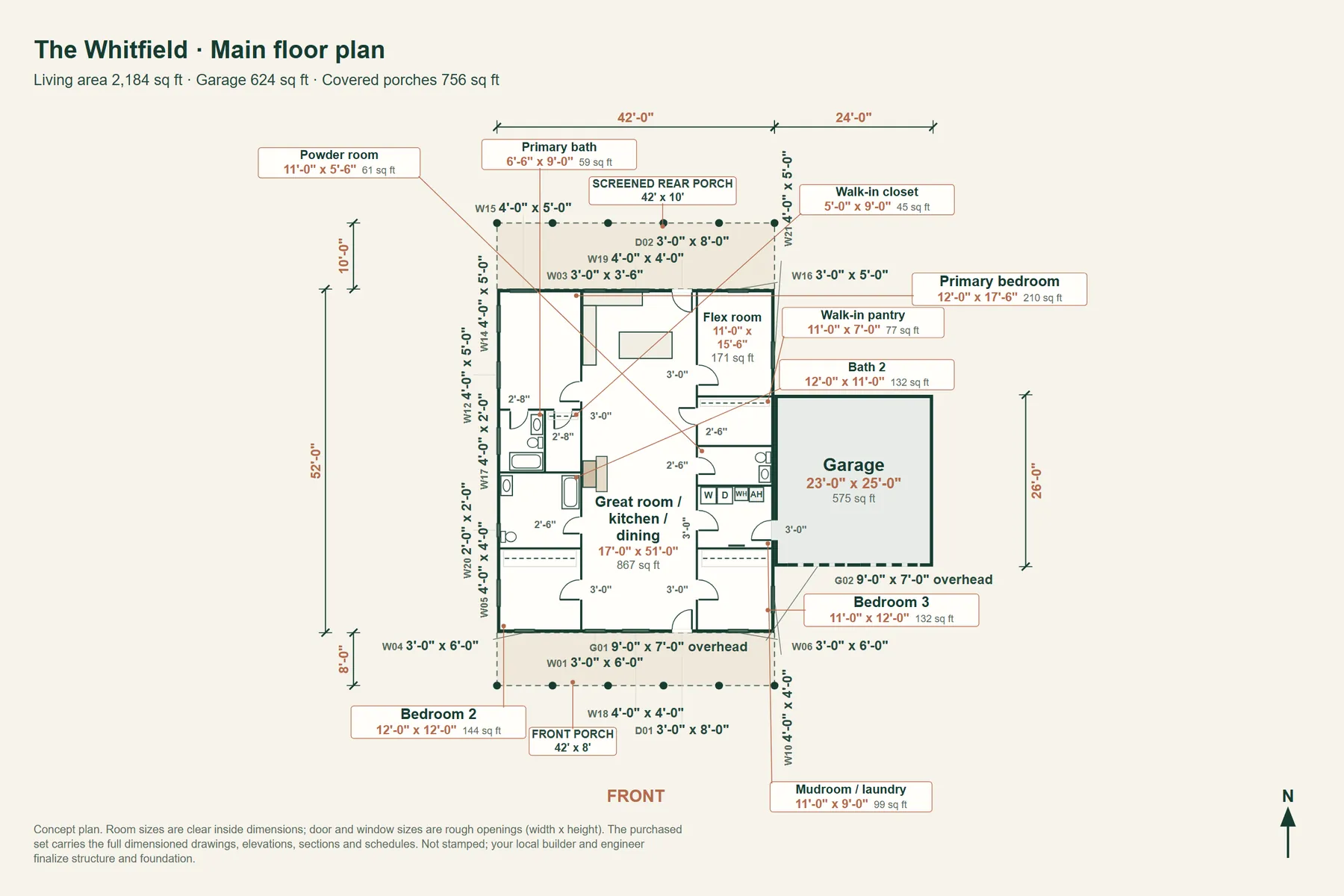

The Whitfield: main floor plan with room dimensions and door and window sizes — Main floor plan. Tap to open full size.

Overall footprint: 66 ft wide by 52 ft deep, the buildings' footprint without porches and decks
Stories: 1 story
Roof (main house): 8:12 pitch, 18 in overhangs
Eave 11'-0", ridge 25'-0"
Ridge runs front-to-back
Chimney above the Great room / kitchen / dining (3 ft wide), centered 24 ft back from the front wall of the house, through the left roof slope, 7 ft from the ridge; its top is 27 ft above the floor, 2 ft above the ridge
Masses: House: 42' x 52', living space, eave 11'-0", ridge 25'-0"
Garage: 24' x 26', eave 10'-0", ridge 18'-0"
Porches: Front porch: 42' x 8', 3:12 shed roof attached at 11 ft, beam 9 ft high at the posts, 6 posts
Screened rear porch: 42' x 10', 3:12 shed roof attached at 11 ft, beam 8 ft 6 in high at the posts, 6 posts
Structure: Drawn for conventional wood (stick) framing; trusses, posts, beams and footings are sized by the builder's engineer. A steel-frame or post-frame version is an adaptation your builder or engineer makes. Member sizes, connections and loads are by your builder's engineer for your site.
Foundation: Typical starting point: monolithic slab-on-grade with a thickened edge (a stem wall where frost depth requires), footings below the local frost line, a footing under every interior bearing line and girder point, and porch-post footings with uplift ties. Slab thickness, footing sizes, reinforcing and anchorage are sized by your engineer for your soil, frost depth and loads; shop and garage slabs are usually heavier than living-area slabs.
Counts: 15 windows, 2 exterior doors, 2 overhead doors, 12 porch posts

Rooms

Room	Size	Area
Bedroom 2	12'-0" x 12'-0"	144 sq ft
Bath 2	12'-0" x 11'-0"	132 sq ft
Primary bath	6'-6" x 9'-0"	58 sq ft
Walk-in closet	5'-0" x 9'-0"	45 sq ft
Primary bedroom	12'-0" x 17'-6"	210 sq ft
Great room / kitchen / dining	17'-0" x 51'-0"	867 sq ft
Bedroom 3	11'-0" x 12'-0"	132 sq ft
Mudroom / laundry	11'-0" x 9'-0"	99 sq ft
Powder room	11'-0" x 5'-6"	60 sq ft
Walk-in pantry	11'-0" x 7'-0"	77 sq ft
Flex room	11'-0" x 15'-6"	170 sq ft
Garage	23'-0" x 25'-0"	575 sq ft

Doors and windows

Swipe the table sideways to see sill, room and wall.

ID	Type	Size	Sill	Room	Wall
W01	Window	3'-0" x 6'-0"	2'-0"	Great room / kitchen / dining	Front
W03	Window	3'-0" x 3'-6"	3'-6"	Great room / kitchen / dining	Rear
W04	Window	3'-0" x 6'-0"	2'-0"	Bedroom 2	Front
W05	Window	4'-0" x 4'-0"	3'-0"	Bedroom 2	Left side
W06	Window	3'-0" x 6'-0"	2'-0"	Bedroom 3	Front
W10	Window	4'-0" x 4'-0"	3'-0"	Bedroom 3	Right side
W12	Window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Left side
W14	Window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Left side
W15	Window	4'-0" x 5'-0"	2'-0"	Primary bedroom	Rear
W16	Window	3'-0" x 5'-0"	2'-0"	Flex room	Rear
W17	Window	4'-0" x 2'-0"	5'-0"	Primary bath	Left side
W18	Window	4'-0" x 4'-0"	12'-6"	Great room / kitchen / dining	Front
W19	Window	4'-0" x 4'-0"	12'-6"	Great room / kitchen / dining	Rear
W20	Window	2'-0" x 2'-0"	5'-0"	Bath 2	Left side
W21	Window	4'-0" x 5'-0"	2'-0"	Flex room	Right side
D01	Entry door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Front
D02	Door	3'-0" x 8'-0"	no sill	Great room / kitchen / dining	Rear
G01	Overhead door	9'-0" x 7'-0"	no sill	Garage	Front
G02	Overhead door	9'-0" x 7'-0"	no sill	Garage	Front

Sizes are clear inside dimensions for rooms and rough openings for doors and windows, from the plan set. Roof heights are above the finished floor. The structure and foundation lines are typical starting points: the drawings are not stamped, and your builder's engineer sizes members, footings and anchorage for your site, soil, snow, wind and frost depth.
